Click on image to enlarge
Download PDF: HSK Master Setting Gauges (455.100)
Description

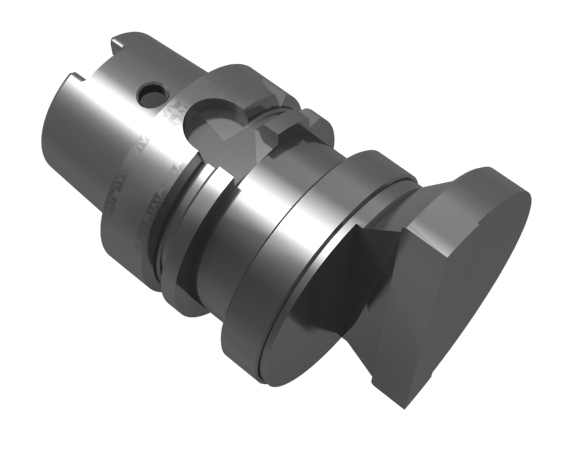

To guarantee accurate and repeatable machine accuracy, various other components in the total machining process need to be correctly and accurately positioned. The Center Height Gauge allows the spindle center and spindle orientation to be checked. In addition, the gauge can also be used for tool presetter verification.
Specifications subject to change; contact us when ordering.
Parts

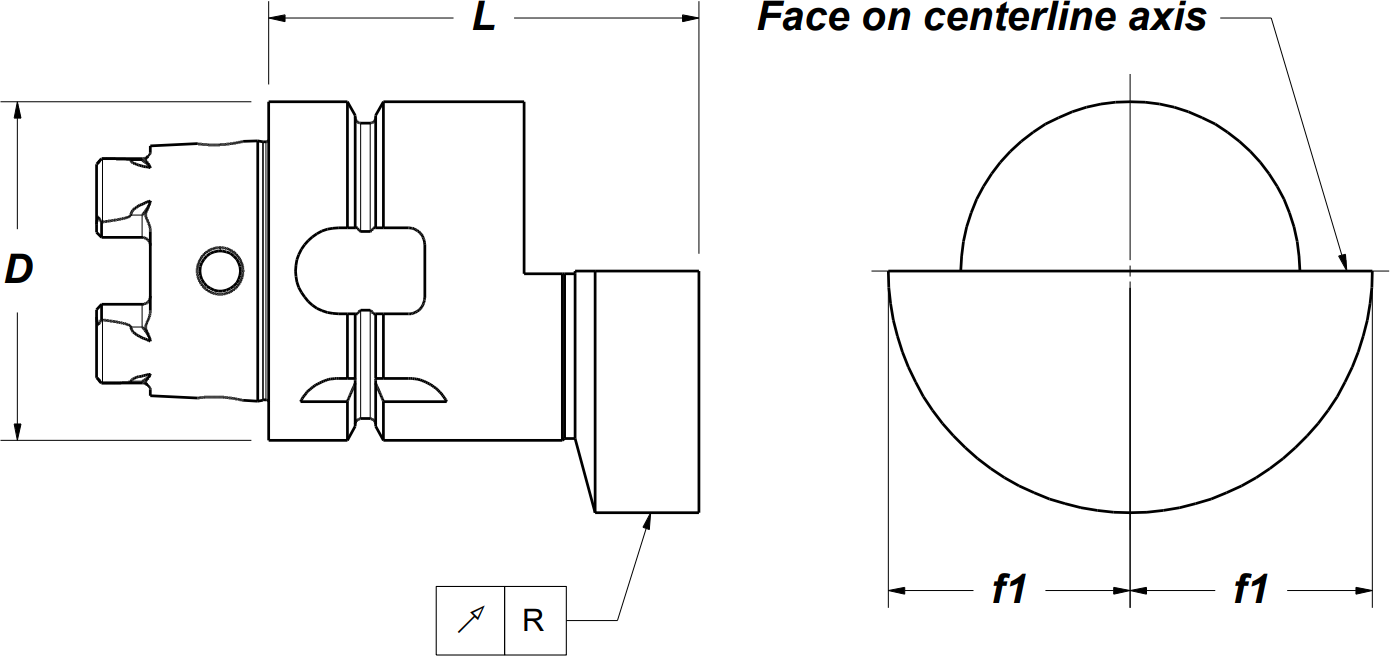

| Taper | Diameter | Gauge Length | fg | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| HSK-A/C/E 25 | Contact us | 455.110.125.000 | ||||||
| HSK-A/C/E 32 | Dg=34 | lg=40 | 22 | 455.110.132.000 | ||||
| HSK-A/C/E 40 | Dg=42 | lg=50 | 27 | 455.110.140.000 | ||||
| HSK-A/C/E 50 | Dg=52 | lg=60 | 35 | 455.110.150.000 | ||||
| HSK-A/C/E 63 | Dg=65 | lg=80 | 45 | 455.110.163.000 | ||||
| HSK-A/C/E 80 | Contact us | 455.110.180.000 | ||||||
| HSK-A/C/E 100 | Contact us | 455.110.190.000 | ||||||
| HSK-A/C/E 125 | Contact us | 455.110.192.000 | ||||||
| HSK-A/C/E 160 | Contact us | 455.110.196.000 |
Contact Us About This Item
