Click on image to enlarge
Download PDF: Steep Taper Master Setting Gauges (455.800)
Description

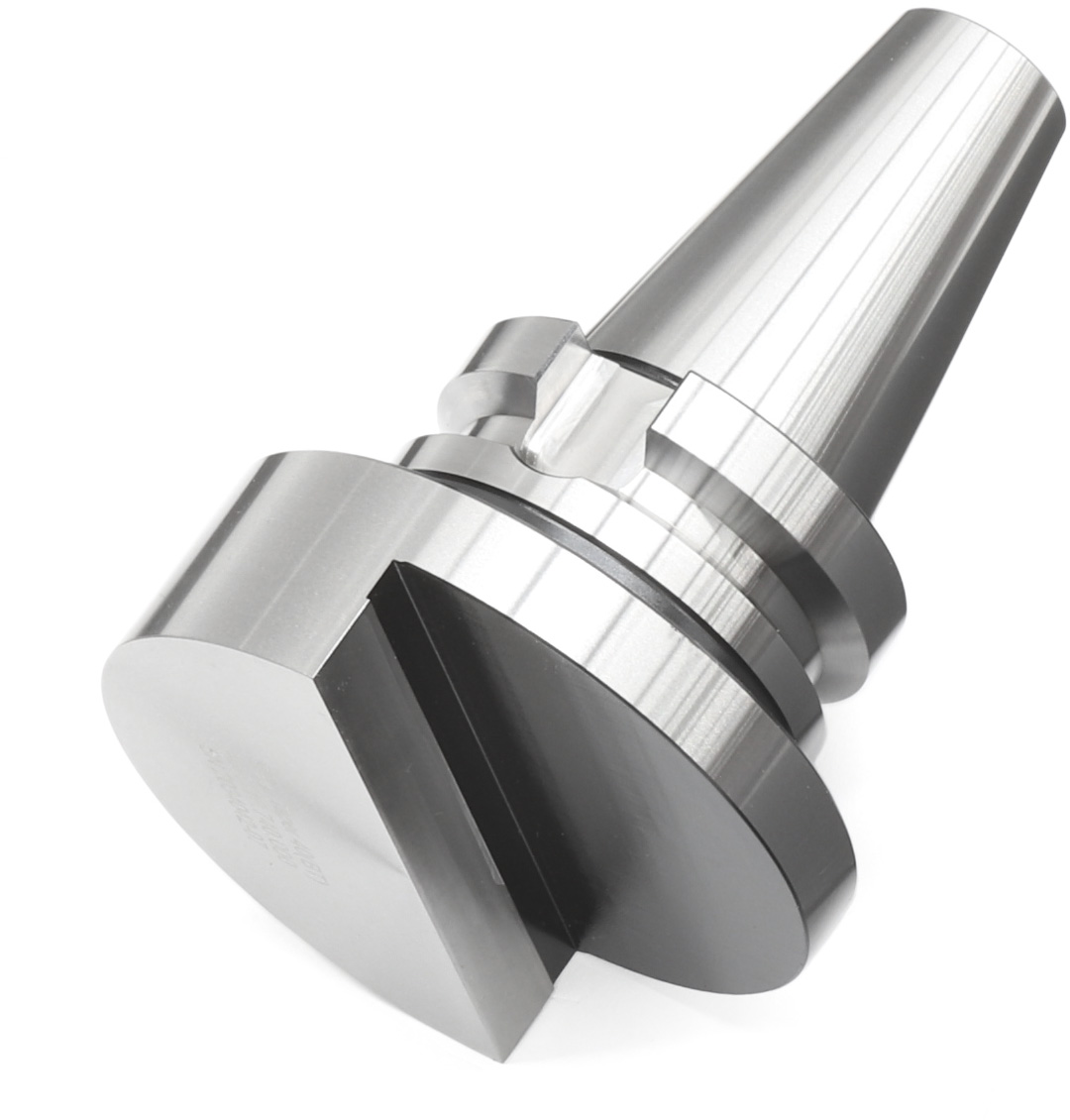

To guarantee accurate and repeatable machine accuracy, various other components in the total machining process need to be correctly and accurately positioned. The Center Height Gauge allows the spindle center and spindle orientation to be checked. In addition, the gauge can also be used for tool presetter verification. Specifications subject to change; contact us when ordering.
Parts

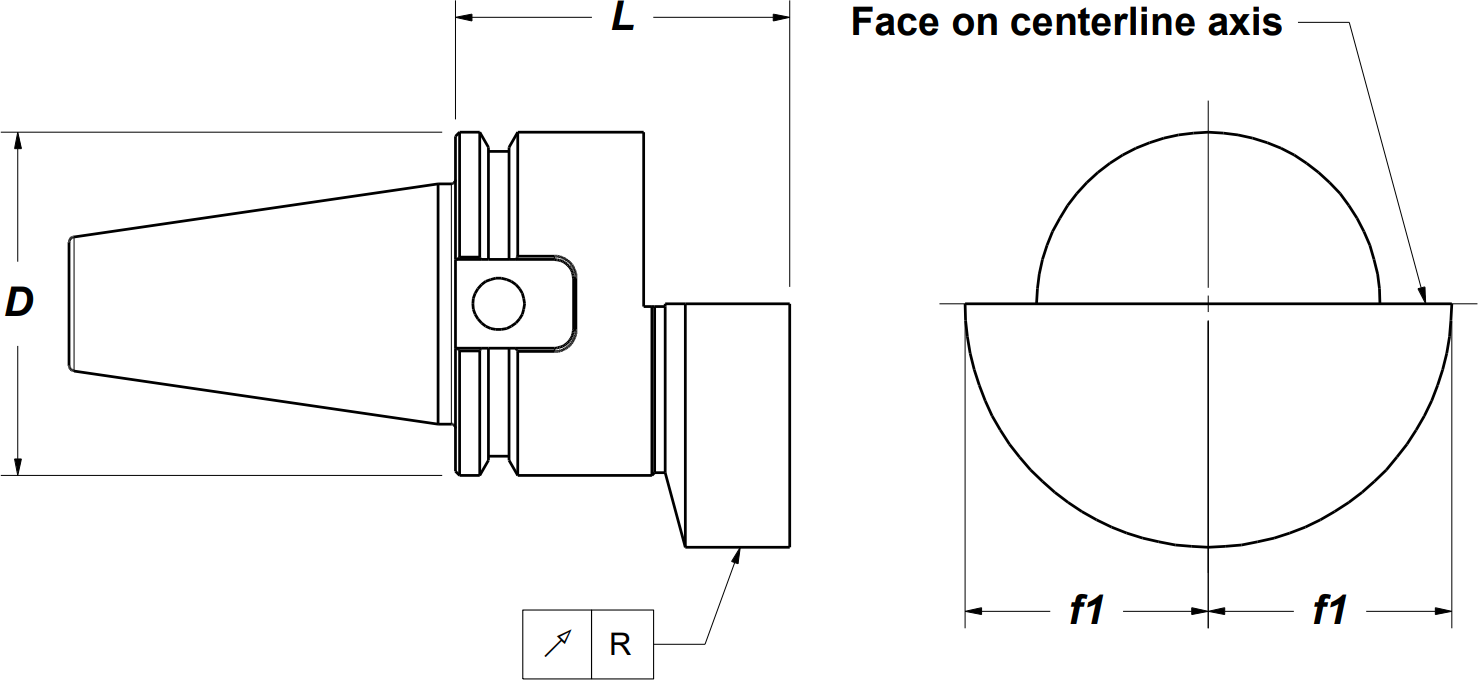

| Taper | Diameter | Gauge Length | fg | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper 30 (BT) | Dg=42 | lg=50 | 27 | 455.110.730.000 | ||||
| Steep Taper 40 (BT) | Dg=65 | lg=65 | 45 | 455.110.740.000 | ||||
| Steep Taper 50 (BT) | Contact us | 455.110.750.000 | ||||||
| Steep Taper 30 (DIN) | Dg=42 | lg=50 | 27 | 455.110.830.000 | ||||
| Steep Taper 40 (DIN) | Dg=65 | lg=65 | 45 | 455.110.840.000 | ||||
| Steep Taper 45 (DIN) | Contact us | 455.110.845.000 | ||||||
| Steep Taper 50 (DIN) | Contact us | 455.110.850.000 | ||||||
| Steep Taper 60 (DIN) | Contact us | 455.110.860.000 |
Contact Us About This Item
