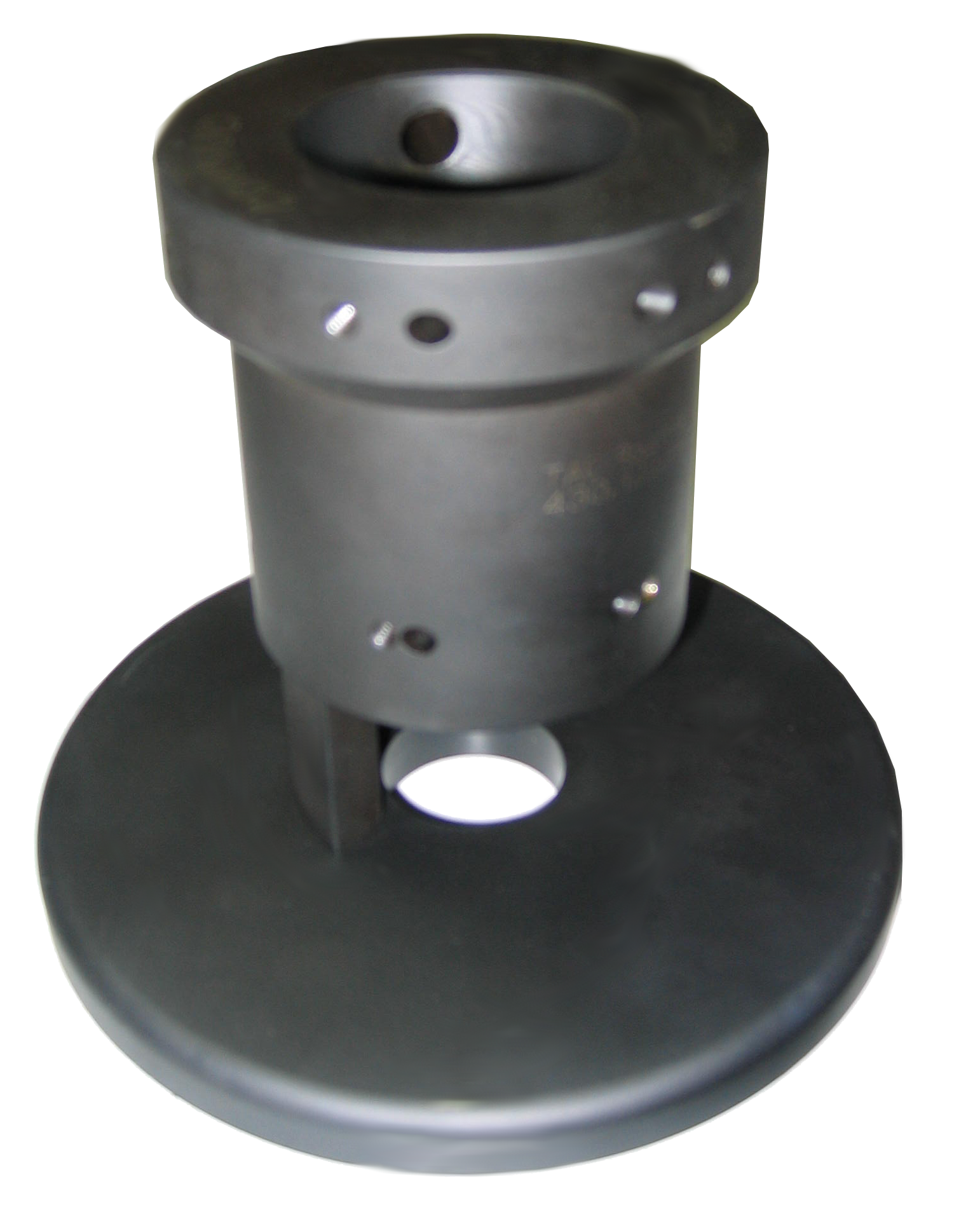

Detect tool holder taper wear in seconds
Click on image to enlarge
Download PDF: Tool Holder Taper Check Gauges (430.120)
Description
• Maximize tool life and spindle life
• Ensure tool holder performance
• Tool holder can be tested with components assembled, and works with retention knob installed
• Includes (A) and (B) indicators with 0.0001" resolution
• Carbide locating pins for long life
• Made with hardened tool steel body
• Comes with master shank (C)
1. Place the master shank (C) into the Taper Check.
2. Adjust the two indicators (A) and (B) so they both read zero with the master shank.
3. Remove the master shank.
4. Place the tool holder to be tested into the Taper Check.
5. Simply take the reading from each indicator and find the difference between the two, (B) • (A), to detect shank wear.
Parts
| Taper | Order Number | |||||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper 30 | 430.120.930.000 | |||||||
| Steep Taper 35 | 430.120.935.000 | |||||||
| Steep Taper 40 | 430.120.940.000 | |||||||
| Steep Taper 45 | 430.120.945.000 | |||||||
| Steep Taper 50 | 430.120.950.000 |
