For the periodic verification of the taper of HSK spindles per DIN 69063
Click on image to enlarge
Download PDF: Dial Indicator Spindle Taper Gauges (410.310)
Description
To ensure sustained accuracy at HSK interfaces, we recommend comparison measuring of the geometry of HSK tool shanks and spindles at regular intervals. These checks should become more frequent with an increased change rate at the interface. Calibration on request.

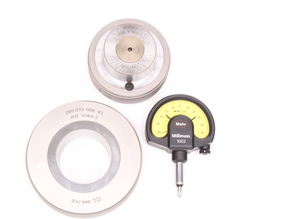

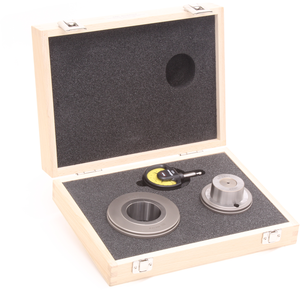

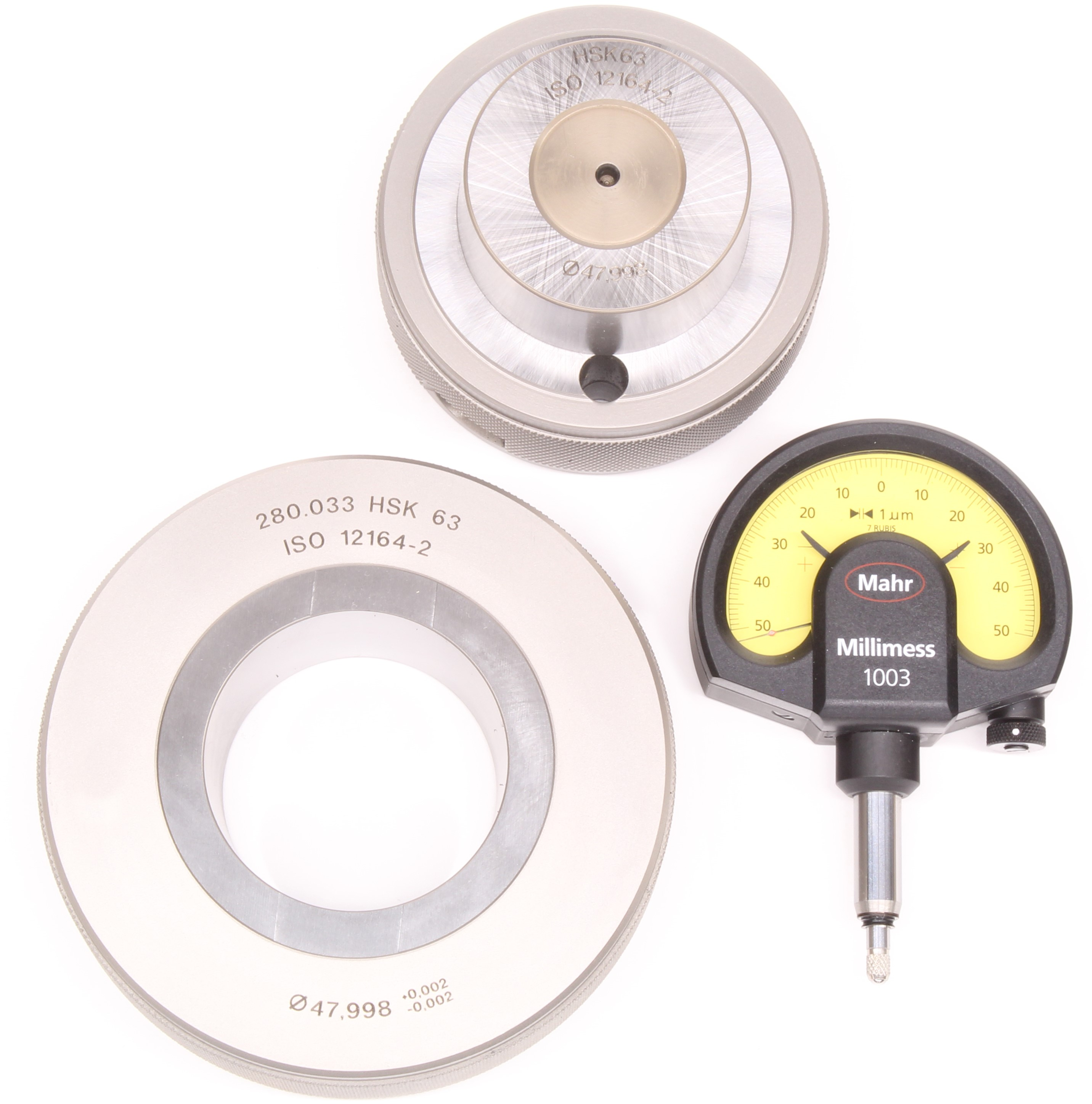

Complete set in wooden case, including taper plug gauge, setting ring, dial indicator (scale 0.001 mm), and certificate.
Note: The groove of the flat contact surface of the setting ring (0.10 mm depth) is necessary for checking plus deviation of the HSK spindle taper.

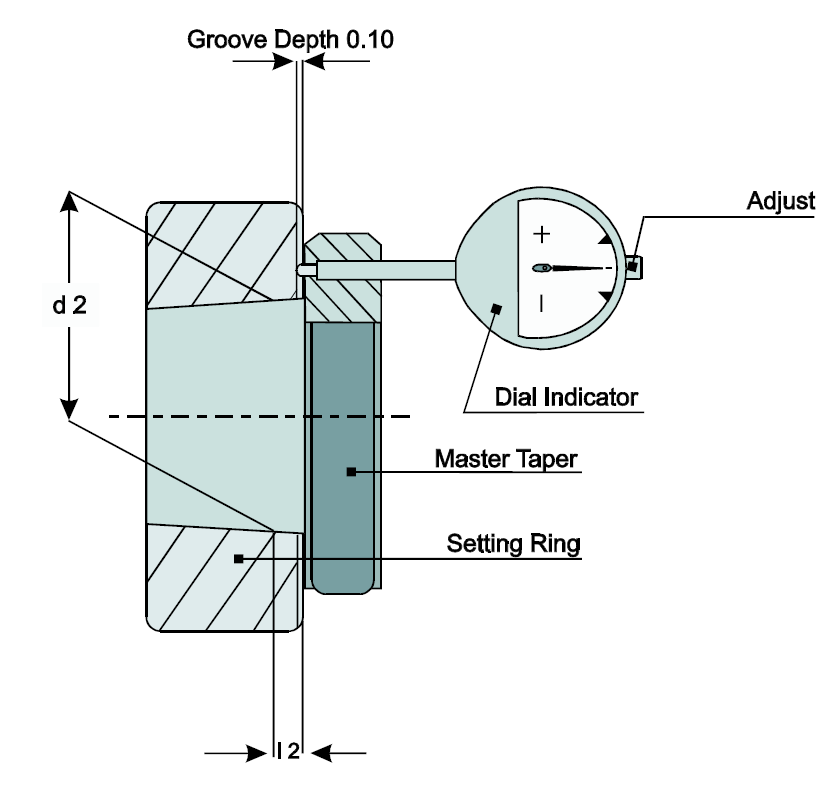

The dimension I 2 (per DIN 69 063) in connection with the taper diameter d2 is set to 0 with the setting ring. The HSK spindle to be measured can be compared with the data from the plug gauge and dial indicator.
Parts
| HSK A/C | d2 | HSK B/D | l 2 | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| HSK-A 32 | 24 | HSK 40 | 3.2 | 410.310.132.000 | ||||
| HSK-A 40 | 30 | HSK 50 | 4 | 410.310.140.000 | ||||
| HSK-A 50 | 38 | HSK 63 | 5 | 410.310.150.000 | ||||
| HSK-A 63 | 48 | HSK 80 | 6.3 | 410.310.163.000 | ||||
| HSK-A 80 | 60 | HSK 100 | 8 | 410.310.180.000 | ||||
| HSK-A 100 | 75 | HSK 125 | 10 | 410.310.190.000 | ||||
| HSK-A 125 | 95 | HSK 160 | 12.5 | 410.310.192.000 | ||||
| HSK-A 160 | 120 | - | 16 | 410.310.196.000 |
Contact Us About This Item
HSK Dial Indicator Spindle Taper Gauge Manual
Instruction manual for the dial indicator spindle taper gauge (410.310)
Details
PDF (410.310M)
Print Data Sheet
