Click on image to enlarge
Download PDF: Capto Master Setting Gauges (455.C00)
Description

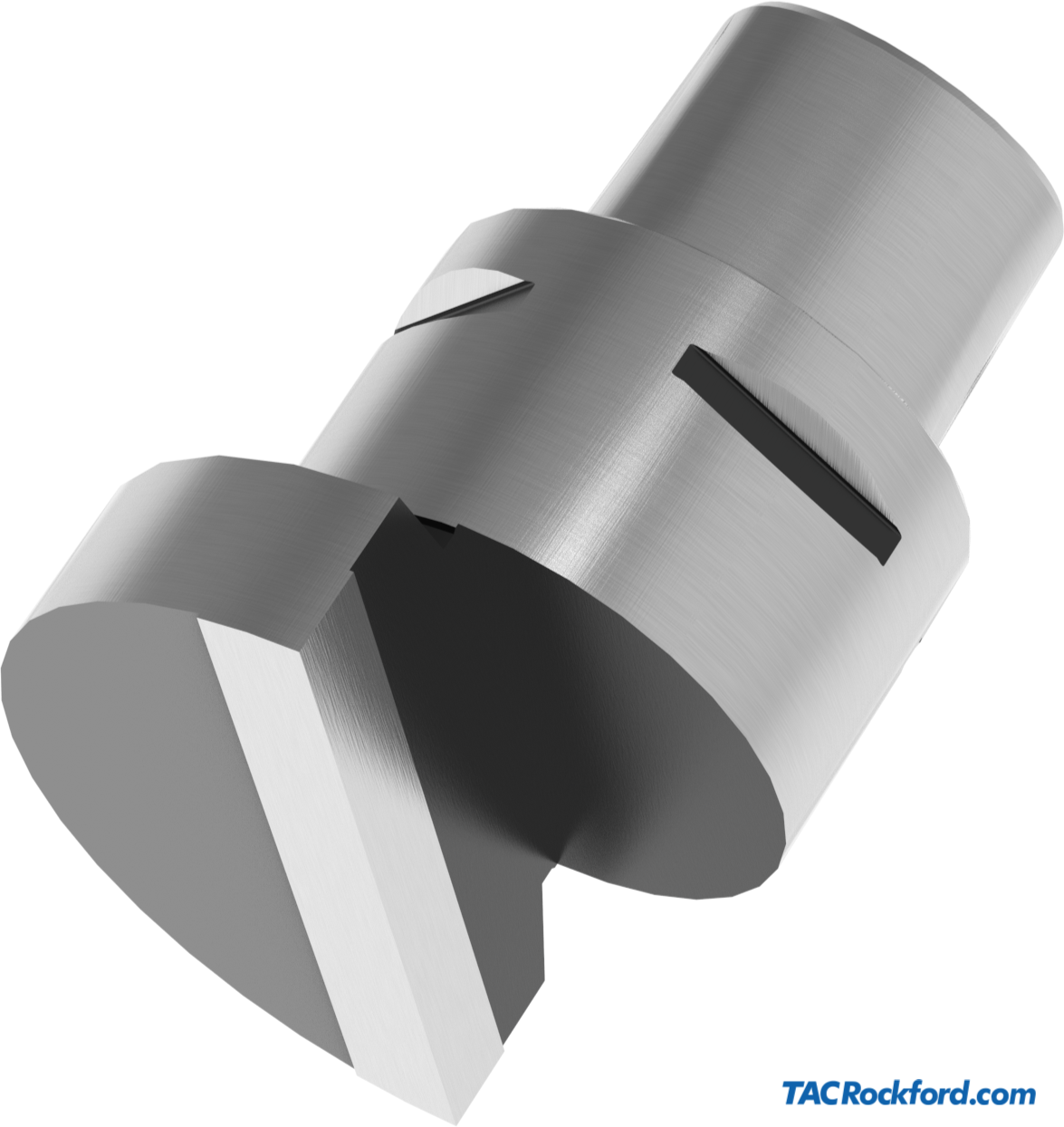

To guarantee accurate and repeatable machine accuracy, various other components in the total machining process need to be correctly and accurately positioned. The Center Height Gauge allows the spindle center and spindle orientation to be checked. In addition, the gauge can also be used for tool presetter verification.
Parts
| Taper | Diameter | Gauge Length | fg | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | Dg=34 | lg=40 | 22 | 455.110.C03.000 | ||||
| Capto C4 | Dg=42 | lg=50 | 27 | 455.110.C04.000 | ||||
| Capto C5 | Dg=52 | lg=60 | 35 | 455.110.C05.000 | ||||
| Capto C6 | Dg=65 | lg=65 | 45 | 455.110.C06.000 | ||||
| Capto C8 and C8X | Dg=82 | lg=80 | 55 | 455.110.C08.000 | ||||
| Capto C10 | Contact us | 455.110.C10.000 |
