Click on image to enlarge
Download PDF: Steep Taper Tool Changer Alignment Gauges (440.800)
Description
The tool changer alignment gauge is used to check automatic tool changer positioning between the gripper arm, magazine, and the spindle. Improper alignment can result in abnormal wear on the spindle interface, tool changer, and tool holder. In addition, mis-clamping and dropped tools can also occur.
The gauge checks axial alignment using pin (1).
Parts
Contact Us About This Item
Steep Taper Tool Changer Alignment Gauge Instruction Manual

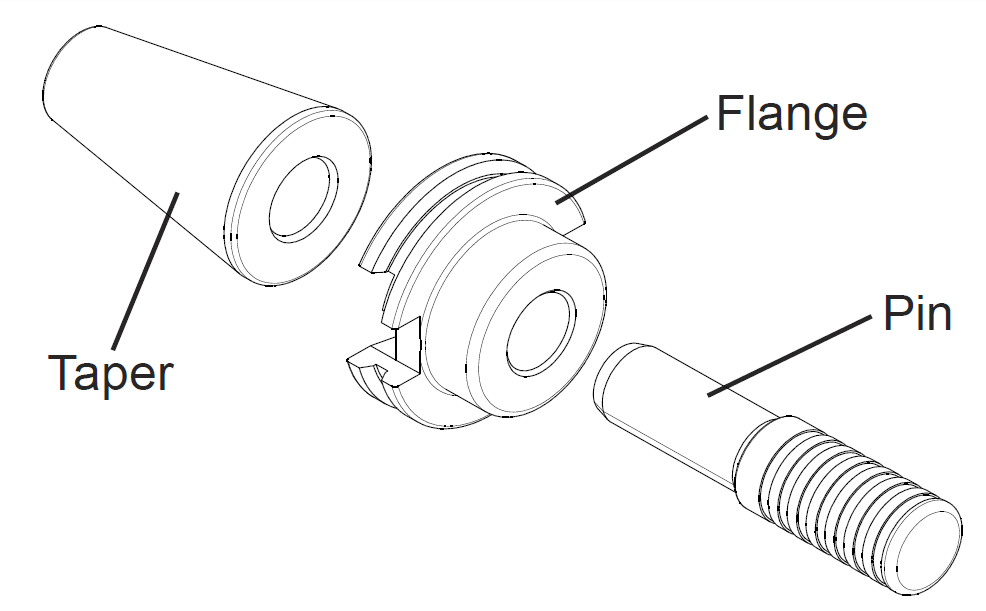

The tool changer alignment gauge is designed to verify correct alignment of the machine spindle to the tool changer. The gauge consists of three pieces as shown in the diagram....
