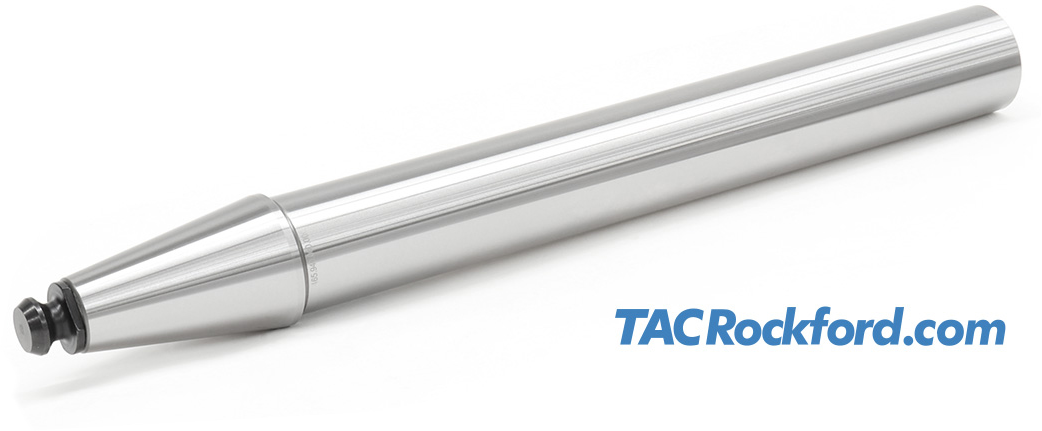

TAC Part 465.950.000.000

Data Sheet Details
Data Sheet (PDF)

Manufacturer TAC Rockford
Product Gauge
Part Type Spindle Runout Test
Taper / Standard Steep Taper (CAT/ANSI)
Taper Size 50
Diameter 50
Gauge Length 300

Show/HidePart Description

Item / Taper: Steep Taper (CAT/ANSI) 50

• Runout tolerance 0.003 mm / 3 micron / 0.0001 inch.
• 1 micron arbors available; please contact us.
• Runout arbors include certificates.
• Carrying cases are available.
• Contact us for other lengths, tapers, and other special requirements.

Show/HideRelated Parts

Item / Taper Diameter Gauge Length Retention Knob Thread Order Number
Runout Arbor Travel Case                465.001.000.000
Steep Taper (BT) 30  40  300            465.730.000.000
Steep Taper (BT) 40  40  300            465.740.000.000
Steep Taper (DIN) 30  32  300            465.830.000.000
Steep Taper (DIN) 40  40  300            465.840.000.000
Steep Taper (DIN) 45  50  300            465.845.000.000
Steep Taper (DIN) 50  50  320            465.850.000.000
Steep Taper (DIN) 60  call              465.860.000.000
Steep Taper (CAT/ANSI) 40  40  300            465.940.000.000
