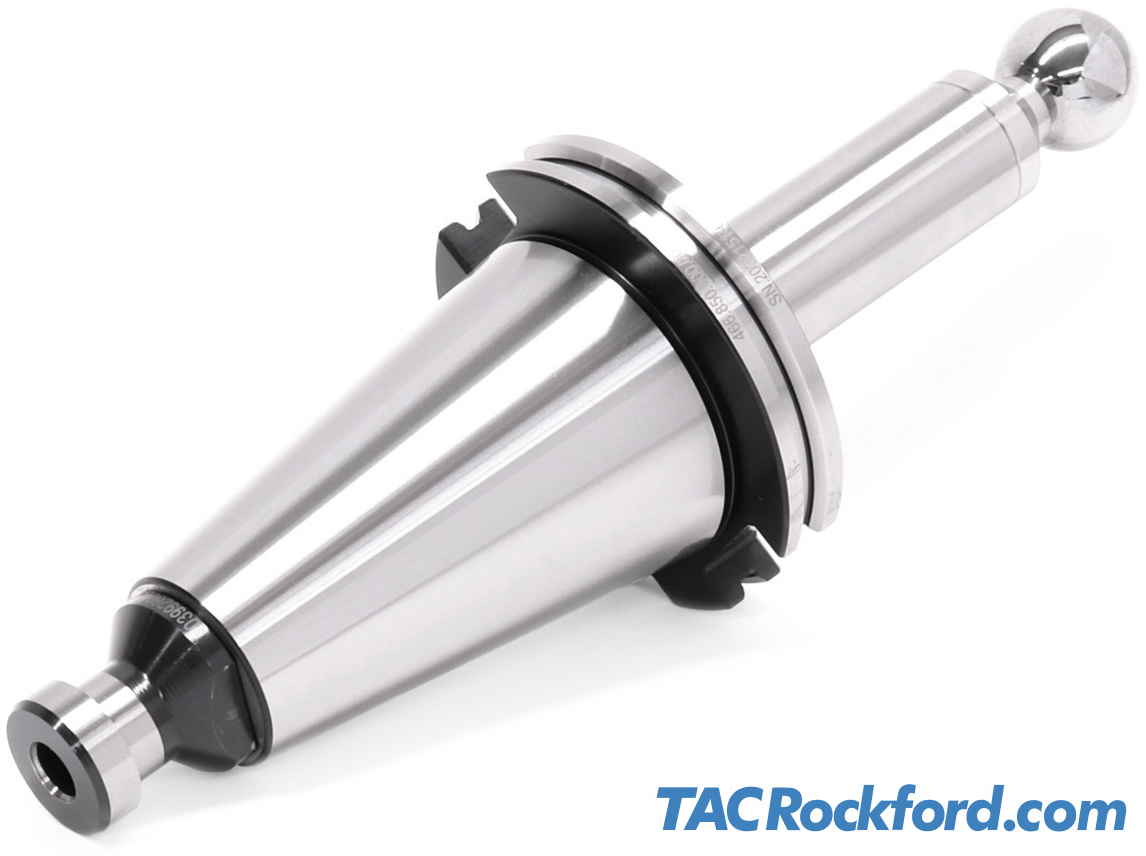

Download PDF: Steep Taper Test Arbors with Ball End (466.800)

Print Data Sheet

Show/HideDescription

Ball end spindle runout test arbors are ideal for checking 5-axis machines.

A test certificate is included. Nominal accuracy is better than 0.005mm (5 microns).

A storage case is included.

Show/HideParts

Taper D L Order Number
Steep Taper (BT) 40  30  150            466.740.030.150
Steep Taper (BT) 50  30  150            466.750.030.150
Steep Taper (DIN) 40  30  150            466.840.030.150
Steep Taper (DIN) 50  30  150            466.850.030.150
