Click on image to enlarge
Download PDF: Pneumatic Steep Taper Tool Holder Gauge Kits (415.320)
Description

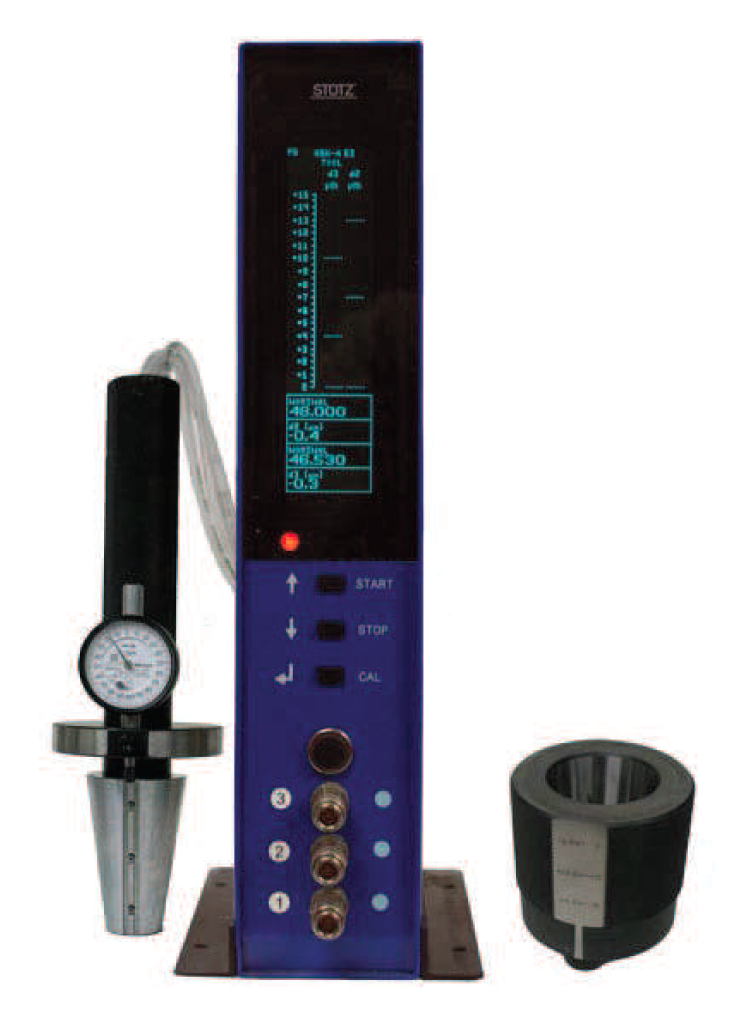

Gauging kit for Steep Taper, CAT/ANSI, ISO, BT tool holder tapers with pneumatic measuring system.
Hard chrome plated with 3 measuring levels and 1 dial indicator for the gauge line according to ASME-B5.50-2009 with hose 1.5 meters long and quick connect coupler for connection to the MSG measuring column.
According to ASME-B5.50-2009, chrome plated and aged steel with international certification.
The Multifunctional Measuring and Control Device is designed for high precision and multifunctional capabilities. In addition to providing various ways for measuring input, it can be customized to meet customer requirements. The Program Designer software is available to allow for additional measuring devices.
Contact Us About This Item
