Capto ForceCheck adapters Thumbnail

Capto Adapters

Custom ForceCheck carrying case set with 3 different adapters Thumbnail

Custom carrying case

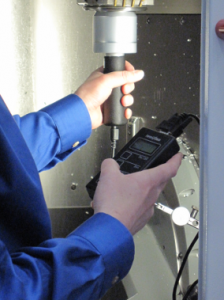

Wired ForceCheck gauge placed inside a spindle Thumbnail

ForceCheck unit in use

ForceCheck Drawbar Clamping Force Gauges Thumbnail

ForceCheck Drawbar Clamping Force Gauges Thumbnail

ForceCheck Drawbar Clamping Force Gauges Thumbnail

Click on image to enlarge

Download PDF: ForceCheck Drawbar Clamping Force Gauges (461.310)

Print Data Sheet

Show/HideDescription

This critical element – the tool clamping force – is often never measured after a machine is put into service. Regular verification allows problems such as broken springs or incorrect stroke to be detected early so maintenance and repairs can be scheduled. As a result, emergencies and unexpected downtime can be avoided. When troubleshooting, drawbar performance can be quickly verified.

Show/HideParts

Description Order Number
ForceCheck HSK-A/C/E 25 Complete Set (US)                461.310.125.000
ForceCheck HSK-A/C/E 32 Complete Set (US)                461.310.132.000
ForceCheck HSK-A/C/E 40 / HSK-B/D/F 50 Complete Set (US)                461.310.140.000
ForceCheck HSK-A/C/E 50 / HSK-B/D/F 63 Complete Set (US)                461.310.150.000
ForceCheck HSK-A/C/E 63 / HSK-B/D/F 80 Complete Set (US)                461.310.163.000
ForceCheck HSK-A/C/E 80 / HSK-B/D/F 100 Complete Set (US)                461.310.180.000
ForceCheck HSK-A/C/E 100 Complete Set (US)                461.310.190.000
ForceCheck HSK-A/C/E 125 Complete Set (US)                461.310.192.000
ForceCheck HSK-A/C/E 160 Complete Set (US)                461.310.196.000
ForceCheck Steep Taper 30 (BT) Complete Set (US)                461.310.730.000
ForceCheck Steep Taper 40 (BT) Complete Set (US)                461.310.740.000
ForceCheck Steep Taper 50 (BT) Complete Set (US)                461.310.750.000
ForceCheck Steep Taper 30 (DIN) Complete Set, Metric Thread (US)                461.310.830.000
ForceCheck Steep Taper 40 (DIN) Complete Set, Metric Thread (US)                461.310.840.000
ForceCheck Steep Taper 40 and 50 (DIN) Complete Set, Metric Thread (US)                461.310.840.850
ForceCheck Steep Taper 50 (DIN) Complete Set, Metric Thread (US)                461.310.850.000
ForceCheck Steep Taper 30 (CAT/ANSI) Complete Set, Inch Thread                461.310.930.000
ForceCheck Steep Taper 40 (CAT/ANSI) Complete Set, Inch Thread (US)                461.310.940.000
ForceCheck Steep Taper 40 and 50 (CAT/ANSI) Complete Set, Inch Thread (US)                461.310.940.950
ForceCheck Steep Taper 45 (CAT/ANSI) Complete Set, Inch Thread (US)                461.310.945.000
ForceCheck Steep Taper 50 (CAT/ANSI) Complete Set, Inch Thread (US)                461.310.950.000
ForceCheck Steep Taper 60 (CAT/ANSI) Complete Set, Inch Thread (US)                461.310.960.000
ForceCheck Steep Taper 10 (ISO) Complete Set                461.310.A10.000
ForceCheck Steep Taper 20 (ISO) Complete Set                461.310.A20.000
ForceCheck Steep Taper 25 (ISO) Complete Set                461.310.A25.000
ForceCheck Capto C3 Complete Set (US)                461.310.C03.000
ForceCheck Capto C4 Complete Set (US)                461.310.C04.000
ForceCheck Capto C5 Complete Set (US)                461.310.C05.000
ForceCheck Capto C6 Complete Set (US)                461.310.C06.000
ForceCheck Capto C8 Complete Set (US)                461.310.C08.000
ForceCheck Capto C10 Complete Set (US)                461.310.C10.000
ForceCheck KM63 Complete Set (US)                461.310.K63.000
ForceCheck KM100 Complete Set (US)                461.310.K90.000
