Click on image to enlarge
Download PDF: Capto Tool Changer Alignment Gauges (440.C00)
Description

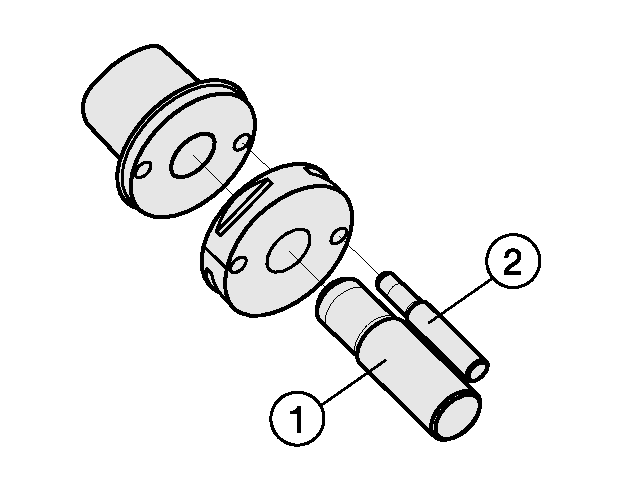

The tool changer alignment tool is used to check automatic tool changer positioning between the gripper arm, magazine, and the spindle. Improper alignment can result in abnormal wear on the spindle interface, mis-clamping, dropped tools, etc. The tool checks axial alignment using pin (1) and radial alignment using pin (2).
The tool checks axial alignment using pin (1) and radial alignment using pin (2).
Parts
| Taper | Order Number | |||||||
|---|---|---|---|---|---|---|---|---|
| Capto C3 | 440.110.C03.000 | |||||||
| Capto C4 | 440.110.C04.000 | |||||||
| Capto C5 | 440.110.C05.000 | |||||||
| Capto C6 | 440.110.C06.000 | |||||||
| Capto C8 | 440.110.C08.000 | |||||||
| Capto C8X | 440.110.C08X.000 | |||||||
| Capto C10 | 440.110.C10.000 |
Contact Us About This Item
