Electronic Tool Taper Gauges

Periodic verification of HSK tool shafts for optimum performance of the HSK system

Electronic Tool Taper Gauges Diagram
Click image to enlarge

Measuring set with storage case includes taper plug gauge, taper measuring ring with four transducers, and certificate.

Note: The indicator column can be linked to a PC for recording and storing the data.

Function

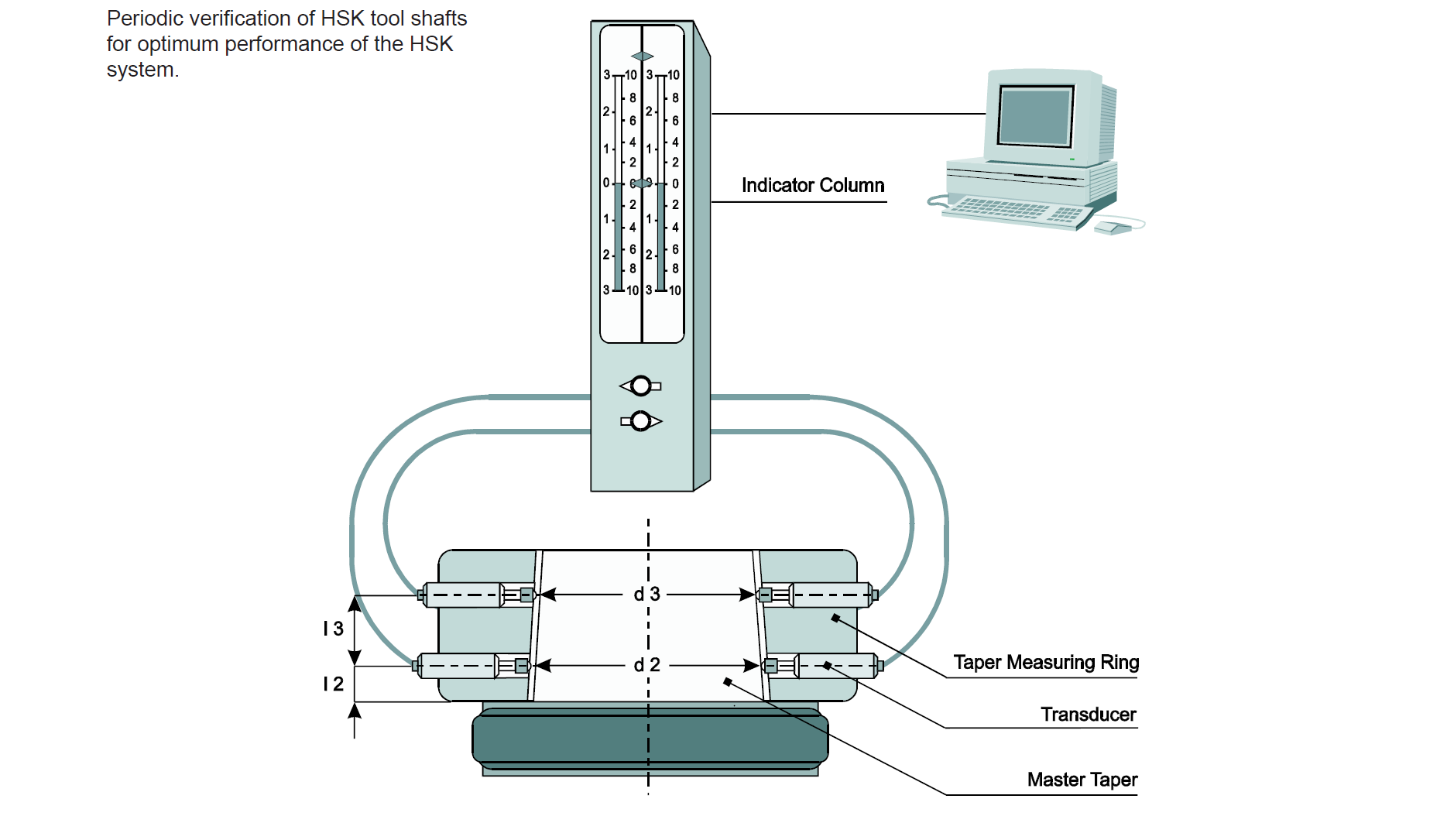

The four transducers mounted in the measuring ring are used for differential measurement of gauge dimensions d2 and d3. Deviations from the calibrated taper plug gauge are shown on the two indicator columns.

HSK A/C/E HSK B/D/F Order Number
Indicator Column 410.220.000.000
HSK-A 25 HSK 32 410.220.125.000
HSK-A 32 HSK 40 410.220.132.000
HSK-A 40 HSK 50 410.220.140.000
HSK-A 50 HSK 63 410.220.150.000
HSK-A 63 HSK 80 410.220.163.000
HSK-A 80 HSK 100 410.220.180.000
HSK-A 100 HSK 125 410.220.190.000

Data Sheet

PDF data sheet: Electronic Tool Taper Gauges (410.220)
