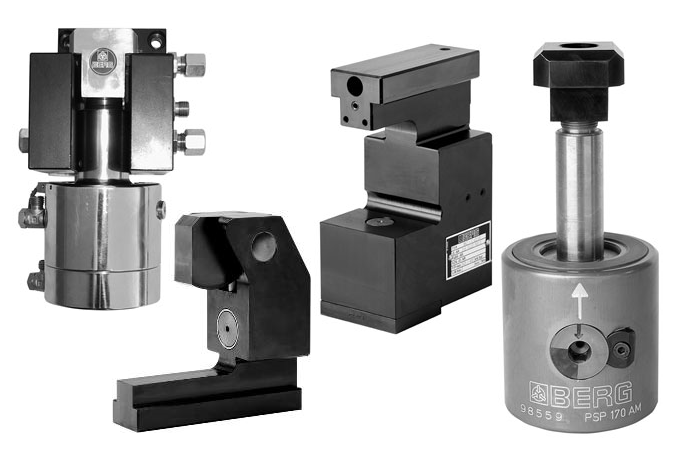

BERG Manually Movable Clamping Systems

BKZ ... P (S)

Hydromechanical Clamping System Drawbar Style

The hydraulic die clamping system BKZ.P is designed for clamping tools and dies of different widths on press slides. The variant BKZ.PS is equipped with a nonreturn valve. The variant BKZ.D (D = double acting) is intended for use in confined installation spaces where short clamping and/or release times are required. The variant BKZ.K (K = cup) compensates for nonparallel tool clamping surfaces. The die clamps can be manually moved in the T-groove of the press slide between the park position and the respective tool. The clamping pressure can be 240 or 400 bar.

BKZ C ... P

Hydraulic C-Clamping System

The hydraulic die clamping system BKZ C.P is designed for clamping tools and dies of different widths on press slides. The variant BKZ C.PS is equipped with a nonreturn valve. The die clamps can be manually moved in the T-groove of the press slide between the park position and the respective tool The clamping pressure is max. 400 bar.

Hydrolock ... P

Hydromechanical Clamping System Drawbar Style selflocking

The hydromechanical selflocking die clamping system Hydrolock ...P is designed for clamping dies of various widths on press slides. The clamping actuator can be moved manually in the T-slot of the press slide between the park position and the respective die. Hydraulic pressure is in maximum 90 bar.

Hydrolock C ... P

Hydromechanical C-Clamping System selflocking

The hydromechanical selflocking die clamping system Hydrolock C...P is designed for clamping dies of various widths on press slides. The clamping actuator can be moved manually in the T-slot of the press slide between the park position and the respective die. Hydraulic pressure is in maximum 90 bar.

PSP ... AM

Mechanical Clamping System

The manually actuated die clamping system PSP.AM is designed for clamping dies of various widths on on press slides and tables. The selflocking eccentric cam gear guarantees a simple handling with a maximum of reliability.

PSP-C ... AM

Mechanical Clamping System

The manually actuated die clamping system PSPC. AM is designed for clamping dies of various widths on press slides and tables. The selflocking eccentric cam gear guarantees a simple handling with a maximum of reliability.
