Click on image to enlarge
Download PDF: BERG Capto Clamping Systems (291-CAPTO)
Description

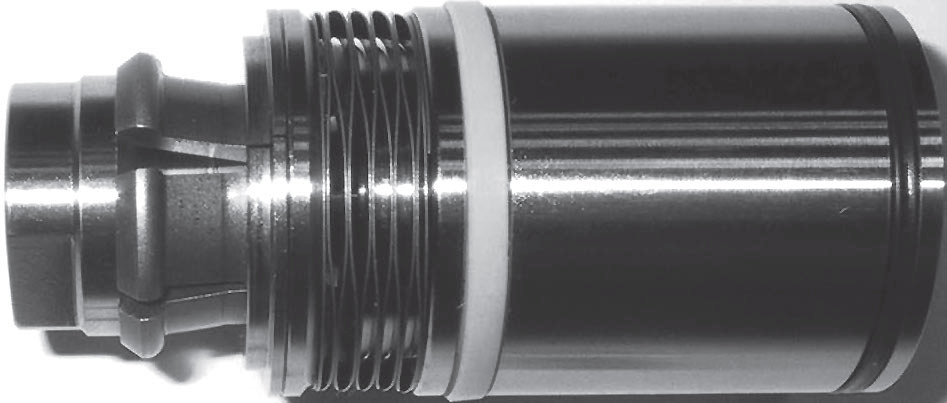

These gripper sets allow a substantial reduction in chip-to-chip times in conjunction with fast tool changers. BERG Spanntechnik, as a system partner of SANDVIC Coromant, supplies customized tool clamping devices for the Capto interface with detenting clamping sets.

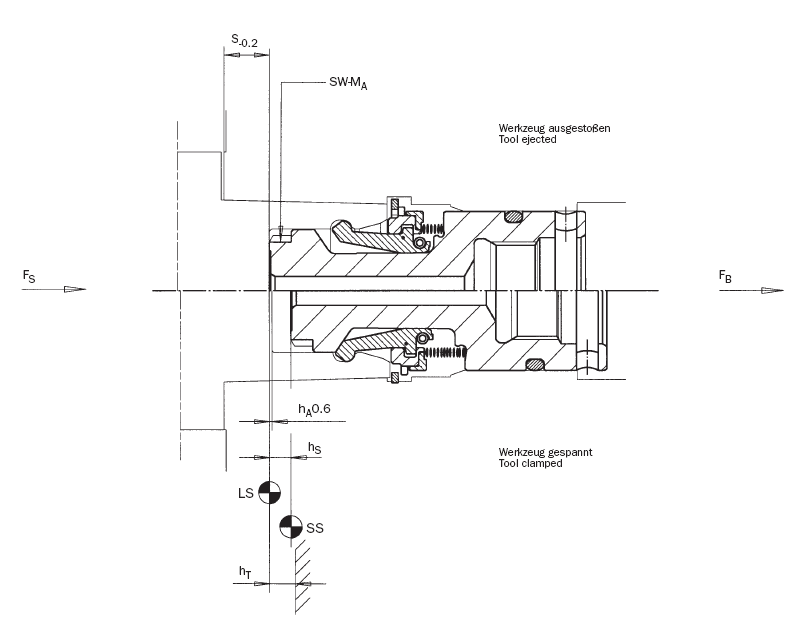

Coromant Capto clamping sets have 6 collets which are held by an annular spring and perform a tilting movement for changing and removing the tool. The Capto R clamping system offers an additional detent function which retains the tool securely in the spindle in the release position.
Contact Us About This Item
BERG Capto Hydraulic Self-Locking Clamping Systems
The self-limiting clamping system for Coromant Capto tools developed by BERG Spanntechnik is used in conjunction with Coromant Capto clamping sets. In this solution the wedge...
Details
PDF (291-SHR-CAPTO)
Capto Tool Changer Alignment Gauges
Available for Capto C3, C4, C5, C6, C8, C8X, C10
Details
PDF (440.C00)
BERG Drawbar Force Gauges
The BERG clamping force measuring system for the tool holders is designed for force measurement when the spindle is stationary! The measuring system consists of a handy sturdy...
Details
PDF (291-M)
BERG Workpiece Holding Clamping Systems
BERG-Spanntechnik offers an extensive range of power operated chucks and hydraulic cylinders which meet all the requirements of modern CNC lathes as there are effective clamping...
Details
PDF (294-K)
Capto Spindle Runout Test Arbors
Available for Capto C3, C4, C5, C6, C8, and C10
Details
PDF (465.C00)
BERG Rotary Transmission Leadthroughs HDF
Rotary transmission leadthroughs serve as a rear inter face for fluid transmission into the spindle. A hydromechanic clamping unit or integrated clamping cylinder can be actuated...
Details
PDF (291-HDF)
