Click on image to enlarge

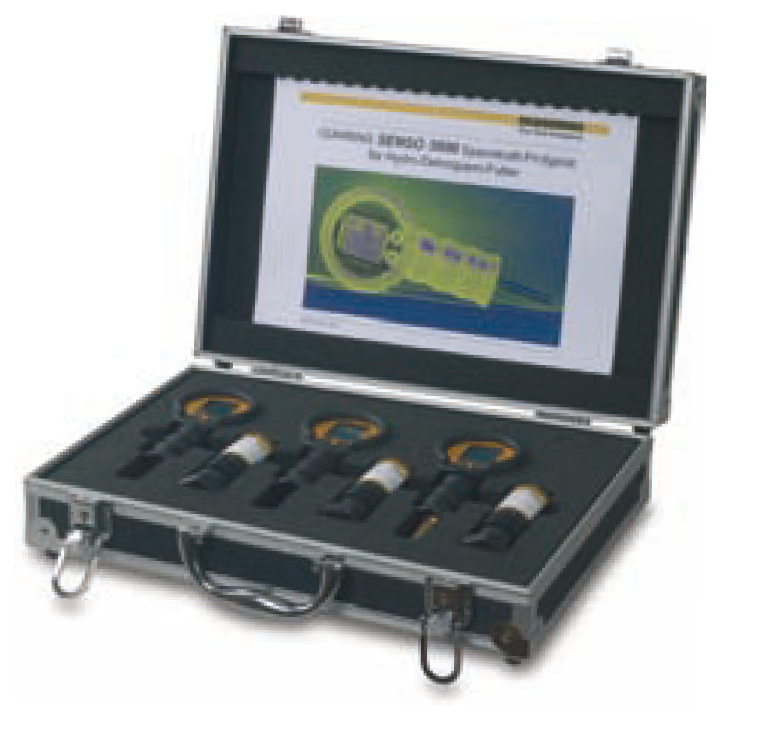

Download PDF: Senso 3000 Collet Gauges (483.038)
Description
• Accurate, quick and simple measuring of the clamping force of hydraulic chucks
• Mobility allows measuring within machines and fixtures
• Determines clamping force via a pressure sensitive plug gauge
• Display of absolute measuring value or percentage clamping force in relation to reference value
• Includes carbide proofing bar for determining the torque
• Includes type CR 2430 battery
• Includes sturdy case
Parts
| Item | Size (mm) | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Collet Gauge | 6 | 483.038.006.000 | ||||||
| Collet Gauge | 8 | 483.038.008.000 | ||||||
| Collet Gauge | 10 | 483.038.010.000 | ||||||
| Collet Gauge | 12 | 483.038.012.000 | ||||||
| Collet Gauge | 14 | 483.038.014.000 | ||||||
| Collet Gauge | 16 | 483.038.016.000 | ||||||
| Collet Gauge | 18 | 483.038.018.000 | ||||||
| Collet Gauge | 20 | 483.038.020.000 | ||||||
| Collet Gauge | 25 | 483.038.025.000 | ||||||
| Collet Gauge | 32 | 483.038.032.000 |
Contact Us About This Item
