Tool Carriers: The Basic Element of the TUL System
Click on image to enlarge
Download PDF: TUL Storage Tool Carrier Blocks (580.121)
Description

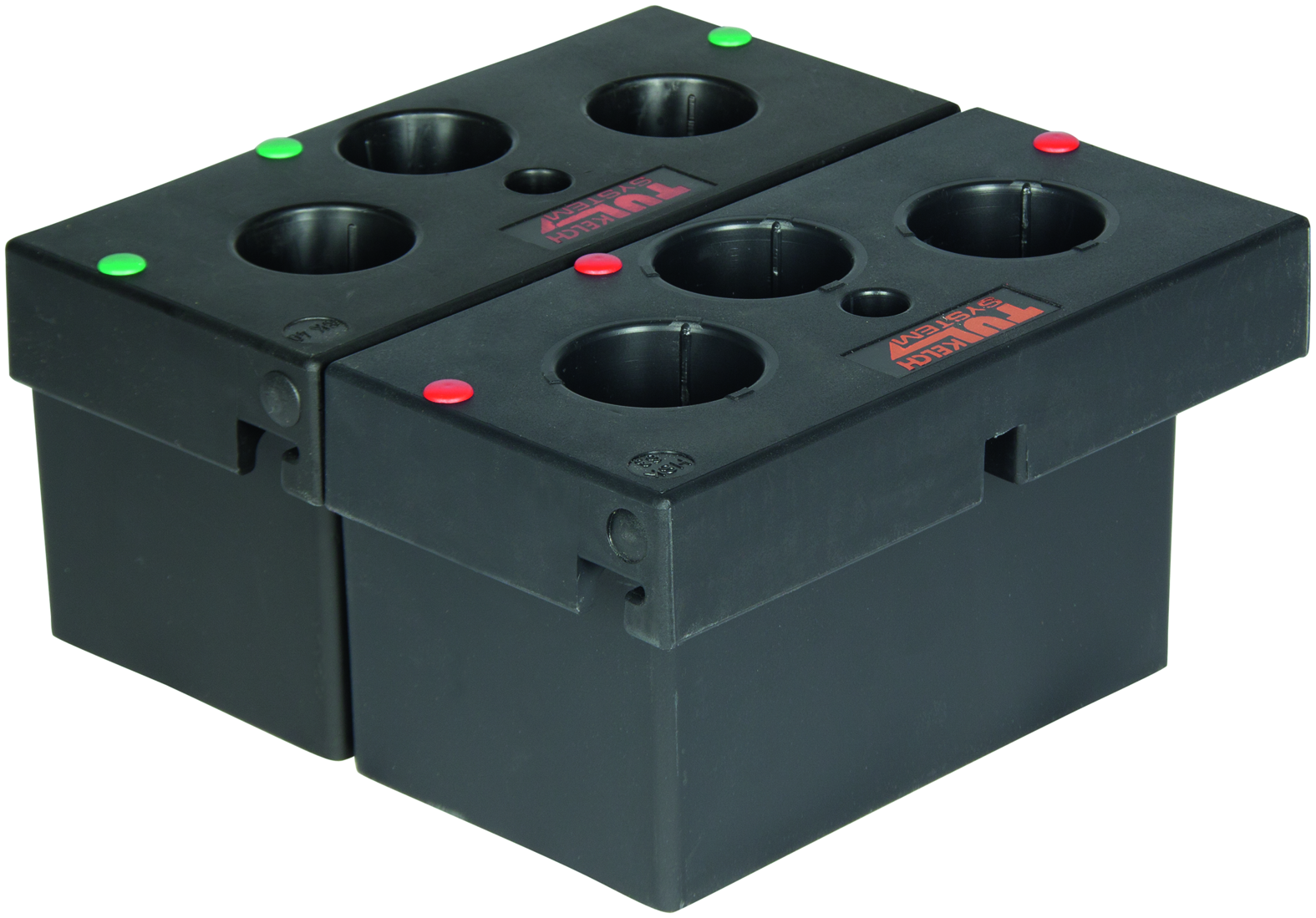

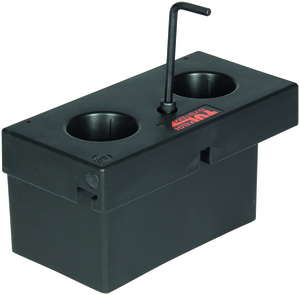

The tool carrier measures 240 x 120 x 130 mm and has 2, 3, or 5 locations for holding tools with a tapered or cylindrical shank. The plastic used is shockproof and resistant to all substances which are usually present such as oils, fats, and petrol.
• The tool carrier is used individually to store and transport few tools. A hole with countersinking enables it to be fastened to a base.

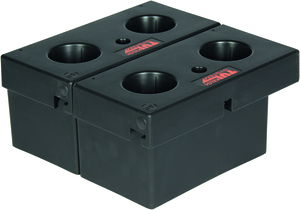

• By assembling several tool carriers linked together, a higher storage capacity can be achieved. A groove and tongue prevent lateral displacement. Only the first and last tool carrier has to be fixed to the table or tool cabinet.
• The tool carriers can be inserted on all trolleys and racks with bars at the side for carrying tools vertically.

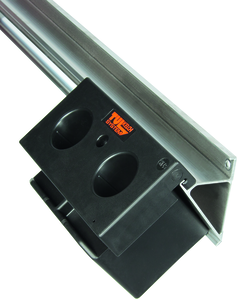

• The tool carriers can be suspended onto aluminum profile rails for attachment on walls, racks, tall cabinets, and transport trolleys. Aluminum profile rails and tool carriers are ideal for building customized storage and transport units.
Parts
| Taper | Tools Held | Order Number | ||||||
|---|---|---|---|---|---|---|---|---|
| Steep Taper 50 | 2 | 127.001 | ||||||
| Capto C4 | 5 | 127.008 | ||||||
| Capto C3 | 5 | 127.009 | ||||||
| Steep Taper 40 | 3 | 127.011 | ||||||
| Steep Taper 45 | 2 | 127.015 | ||||||
| Steep Taper 35 | 3 | 127.018 | ||||||
| HSK-A 32 | 5 | 127.025 | ||||||
| HSK-A 40 | 5 | 127.026 | ||||||
| HSK-A 50 | 5 | 127.027 | ||||||
| HSK-A 63 | 3 | 127.028 | ||||||
| HSK-A 80 | 2 | 127.029 | ||||||
| HSK-A 100 | 2 | 127.030 | ||||||
| Capto C5 | 3 | 127.057 | ||||||
| Capto C6 | 3 | 127.058 | ||||||
| Capto C8 | 2 | 127.059 | ||||||
| Steep Taper 60 | 1 | 127.073 | ||||||
| Steep Taper 30 | 3 | 127.091 |
