HSK Tool Holder Taper Wipers

Share |

Click on image to enlarge

Download PDF: HSK Tool Holder Taper Wipers (530.110)

Print Data Sheet

Description

Used for cleaning the external taper and face.

Parts

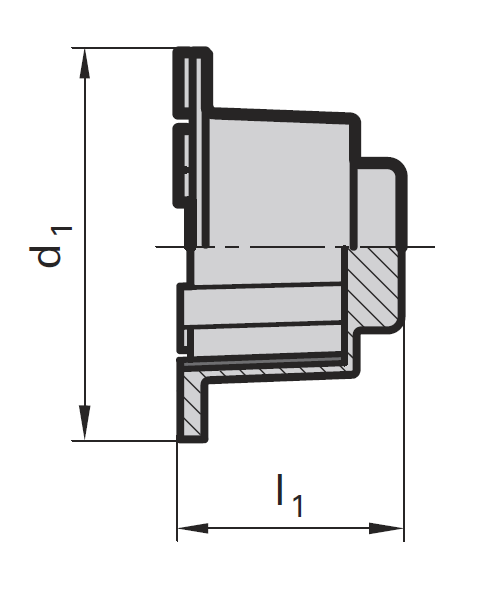

Taper	Ø (d1)	Length (l1)	Order Number
HSK-A/C/E 40	53	36	530.110.140.000
HSK-A/C/E 50	66	42	530.110.150.000
HSK-A/C/E 63	83	53	530.110.163.000
HSK-A/C/E 80	103	58	530.110.180.000
HSK-A/C/E 100	125	77	530.110.190.000
