Click on image to enlarge

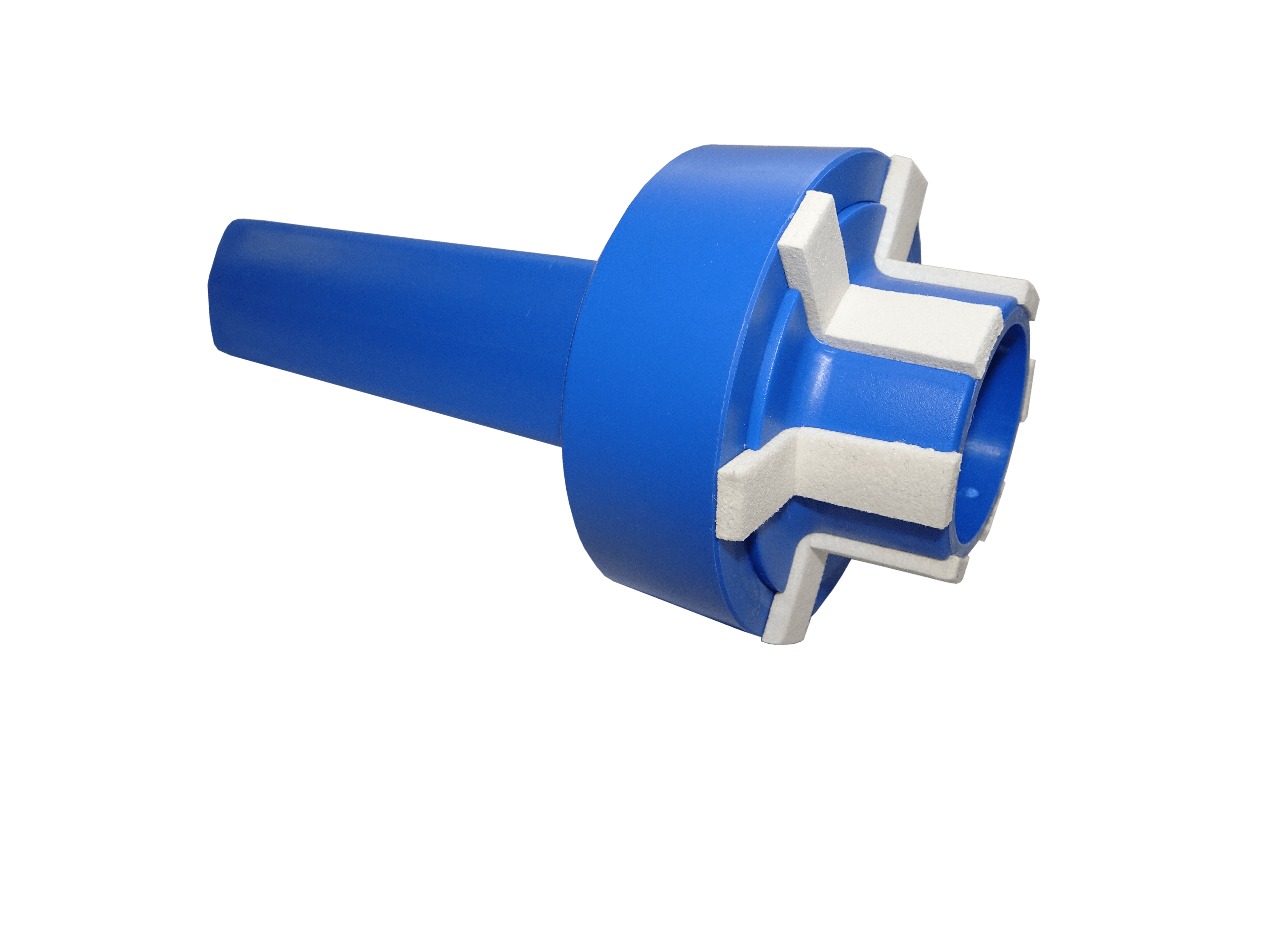

Download PDF: HSK Taper Spindle Wipers (530.101)
Description
Used to clean lubricant and debris from inside the spindle to prevent slipping and poor face contact with the taper. Made with plastic and soft fiber pads for safe contact inside spindles. Recommended cleaning accessory before gauging and performing measurements inside the spindle.
Parts
Contact Us About This Item
