Download PDF: Cylindrical Cleaning Mandrels (530.120)

Print Data Sheet

Show/HideDescription

For cleaning the bore of the tool holder. E.g. hydraulic chucks and shrink fit chucks.

Show/HideParts

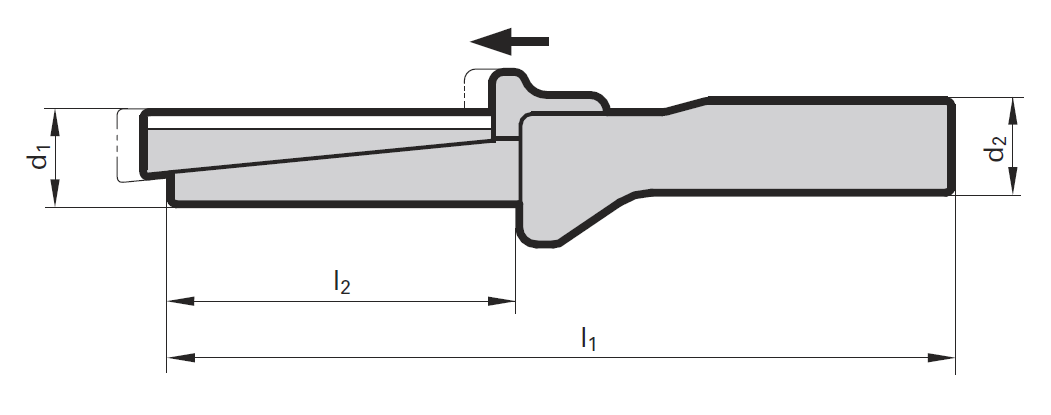

Mandrel Ø (d1) Ø (d2) Length (l2) l1 Order Number
6  24  37  158          530.120.006.000
8  24  37  158          530.120.008.000
10  24  47  168          530.120.010.000
12  24  47  168          530.120.012.000
14  24  47  168          530.120.014.000
16  24  70  176          530.120.016.000
18  24  70  176          530.120.018.000
20  24  70  176          530.120.020.000
25  24  80  186          530.120.025.000
32  30  100  221          530.120.032.000
40  30  105  226          530.120.040.000

Show/HideContact Us About This Item
