3D New Generation Sensors

Share |

Click on image to enlarge

Download PDF: 3D New Generation Sensors (570.110)

Description

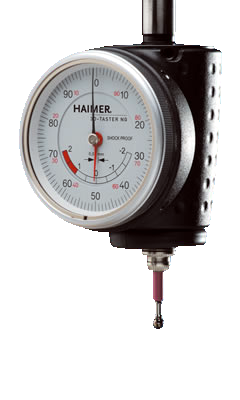

The 3D-Sensor NG is a further development of our worldwide accepted and proven Universal 3D-Sensor. Its distinguishing features are improved mechanics and a new and compact design.

Advantages:

• Compact and easy to grip casing, no restriction to working area
• Precise display of spindle position with large 1/100 mm dial gauge (2 hands)
• Utmost precision of 0,01 mm (when using original Haimer probe tips)
• Marked overrun distance (safety distance)

Functions:

• Aligning machine spindles to work piece edges and reference edges (x-, y-, z-axis)
• Set zeros
• Center borings and shafts
• Measuring lengths and depths
• Checking straightness and levelness of surfaces
• Aligning work pieces and vices
• Quick, without calculations, no mistakes with algebraic signs

Parts

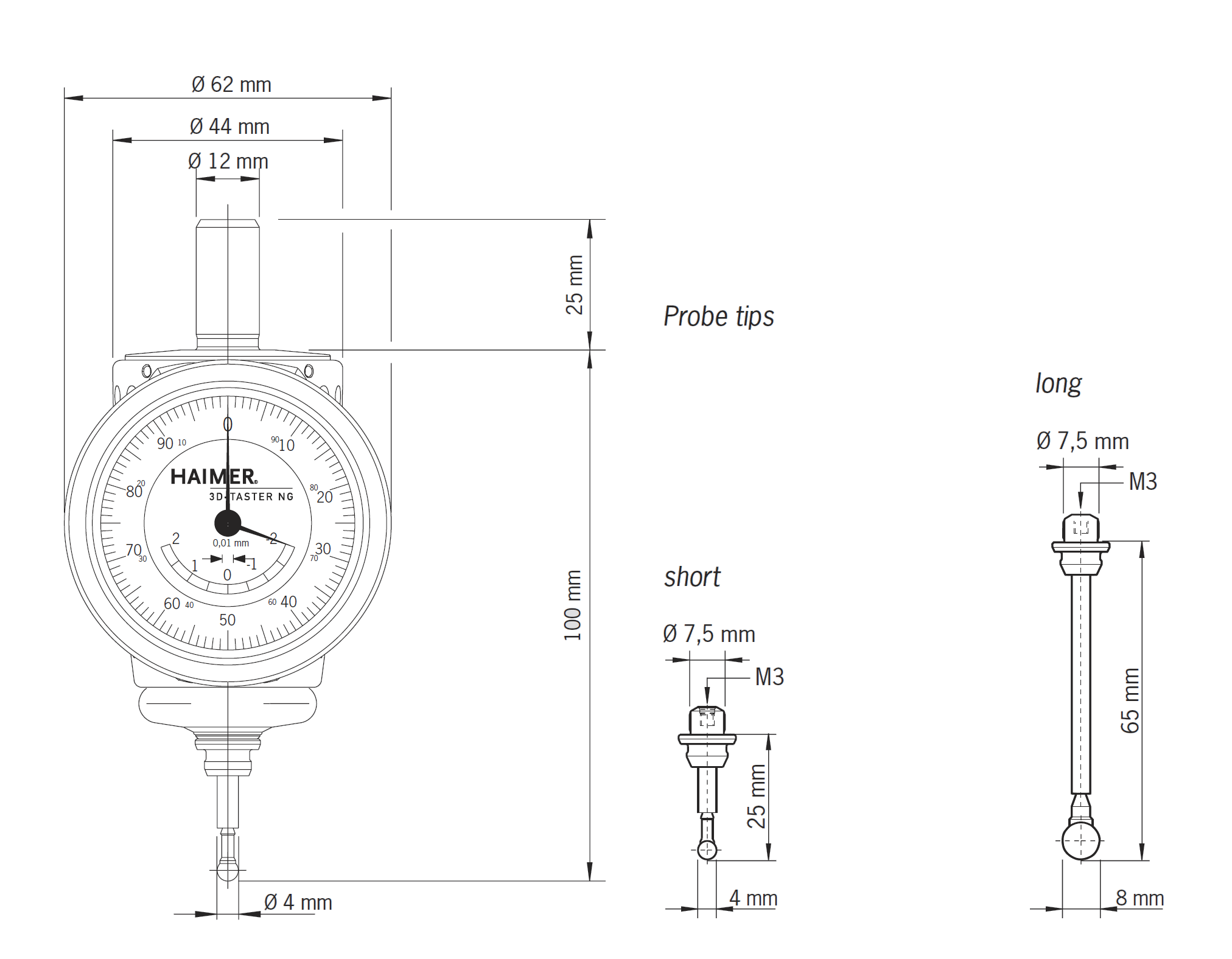

Item	Probe Ø	Accuracy	Length	Order Number
Analog Sensor, Metric w/ Short Probe	12 mm	0.01 mm	100 mm	80.360.00NG
Short Probe Tip	4 mm	0.01 mm	-	80.362.00
Long Probe Tip	8 mm	0.01 mm	-	80.363.00
