Click on image to enlarge
Download PDF: 3D Digital Sensors (570.122)
Description

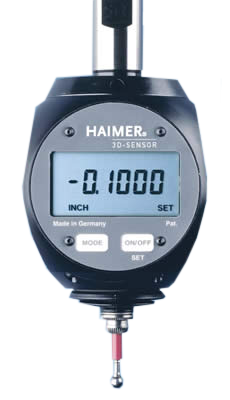

The Digital 3D-Sensor is a further development of the time proven Mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines. The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The 0-position is found on the first try. The machine coordinate system can be set without any calculations because the spindle axis is positioned exactly on the approached edge.
The digital display has large numbers that measure in increments of 0,001mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is splash-proof and dust-proof and can be stored in the tool magazine of the machine.
Parts

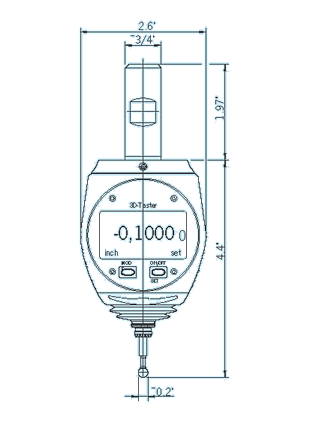

| Item | Probe Ø | Accuracy | Length | Order Number | ||||
|---|---|---|---|---|---|---|---|---|
| Short Probe Tip | 0.2" | 0.0004" | 1" | 80.365.20 | ||||
| Long Probe Tip | 0.4" | 0.0004" | 2.6" | 80.365.30 | ||||
| 3-D Sensor Digital, Inch | 0.2" | 0.0002" | 1" | 80.460.00.IN |
Contact Us About This Item
