Tool Holder Taper Gauges

Without a dimensionally correct tool holder taper, it is not possible to ensure a proper spindle/tool holder connection. Using tool holder dimensional gauges, the taper and other key features can be checked for wear, or new holders can be checked as a part of incoming inspection. In addition, gauges are a necessity when manufacturing tool holders. Units are available for CAT/DIN/BT tapers in basic contact gauges, dial indicator gauges, as well as air gauges. For HSK, we offer dial indicator, electronic, and air gauges.

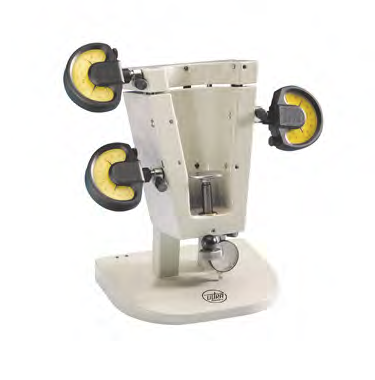

SK Steep Taper

These gauges are designed to test the quality and precision of the tool holder taper of steep taper DIN, CAT/ANSI, MAS 403-BT, or ISO standards. Specific testing standards for other tapers may also be available.

While the gauges check the precise measurement of the tool holder taper, it is recommended to check the milling spindle-interface dimensions as well. For some kits, adapters can be included as a customized kit for checking both the taper and spindle dimensions. Learn more about milling spindle dimensional checking gauges.

Morse Taper

Morse Taper

Tool holder taper gauges designed for the Morse taper (DIN 229).

ER Collet

ER Collet

Dimensional plug gauge designed for ER Collet standard (DIN 6499). Includes certificate. Carrying case separate (430.100.ERC).
