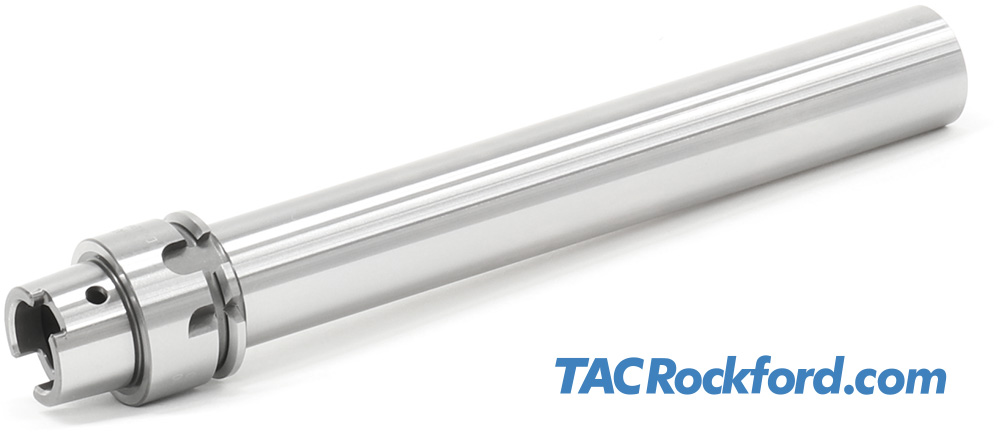

Download PDF: HSK Spindle Runout Test Arbors (465.100)

Print Data Sheet

Show/HideDescription

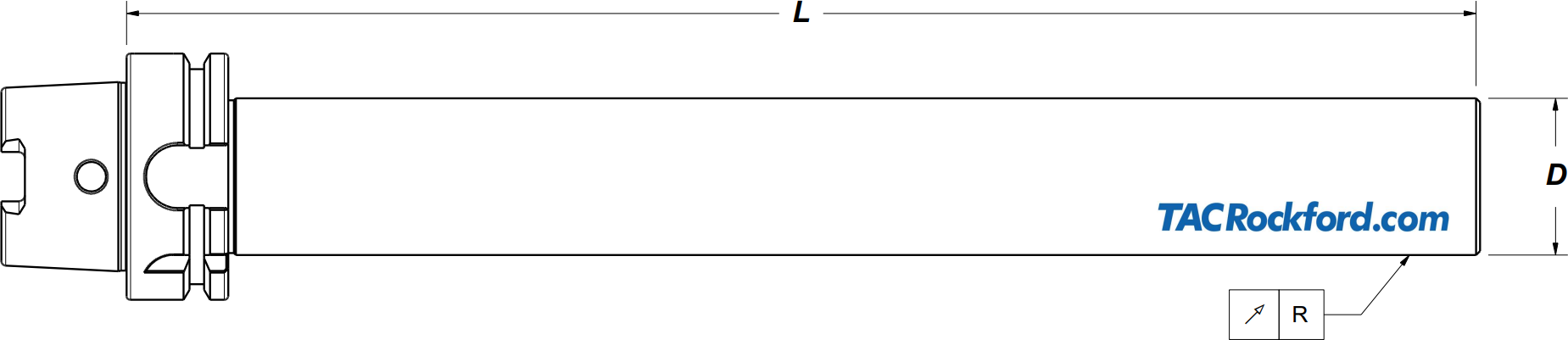

• Dimensions shown are in mm.
• Other sizes and custom arbors are available. Contact us for more information.
• A padded carrying case is available as an option.
• Max. runout at the end of the arbor is 0.003 mm.
• A certificate of accuracy is included.

Show/HideParts

HSK d1 l1 Order Number
HSK-A 25  20  140            465.125.000.000
HSK-A 32  24  180            465.132.000.000
HSK-A/C/E 40  25  200            465.140.000.000
HSK-A/C/E 50 and HSK-F 63  32  346            465.150.000.000
HSK-A/C/E 63  40  346            465.163.000.000
HSK-A 80  40  346            465.180.000.000
HSK-A 100  50  300            465.190.000.000
HSK-A 125  40  349            465.192.000.000
HSK-A 160  40  400            465.196.000.000
