Download PDF: HSK Test Arbors with Ball End (466.100)

Print Data Sheet

Show/HideDescription

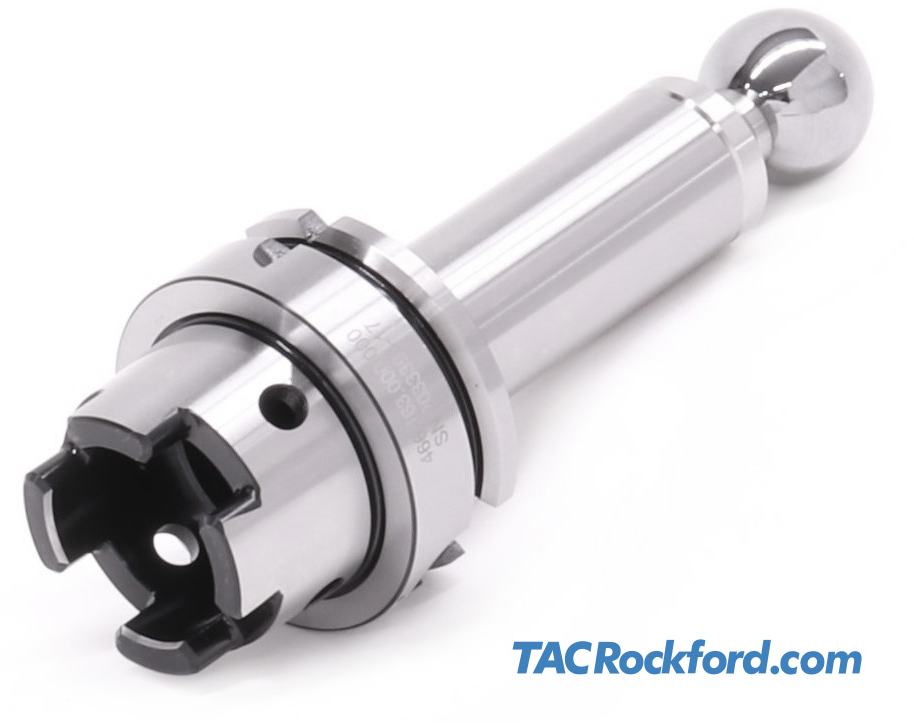

Ball end spindle runout test arbors are ideal for checking 5-axis machines.

A test certificate is included. Nominal accuracy is better than 0.005mm (5 microns).

A storage case is included.

Show/HideParts

Description D L Order Number
HSK-A/C/E 32  30  150            466.132.030.150
HSK-A/C/E 40  30  150            466.140.030.150
HSK-A/C/E 50  30  150            466.150.030.150
HSK-A/C/E 63  30  150            466.163.030.150
HSK-A/C/E 63  30  200            466.163.030.200
HSK-A/C/E 100  30  150            466.190.030.150
HSK-A/C/E 100  30  200            466.190.030.200
HSK-F 63  30  150            466.663.030.150
