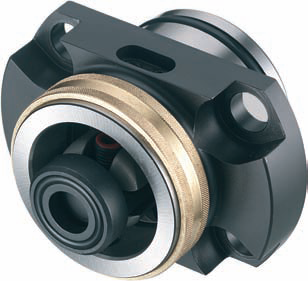

HSK PowerClamp Adapter Flanges for Turning Machines

Share |

Click on image to enlarge

Download PDF: HSK PowerClamp Adapter Flanges for Turning Machines (683.582)

Description

Product Information

• For fixed tools
• Includes setting element to eliminate drive play with vertical tools
• The interface between spindle and flange must be taken into consideration for the transferable torsional moment

Scope of Delivery

• Includes clamping set
• Includes brass locking ring
• Includes indexing pin and retention screws

Parts

Taper (d1)	Ø (d2)	Length (l1)	d3	l2	l3	SW	Version	Order Number
HSK-C 50	84	35	50	55.0	55	4	Left	683.582.038.100
HSK-C 50	84	35	50	55.0	55	4	Right	683.582.038.200
HSK-C 63	100	40	63	64.5	70	5	Left	683.582.048.100
HSK-C 63	100	40	63	64.5	70	5	Right	683.582.048.200

Show/Hide Contact Us About This Item

HSK-C Front Adapter Flanges for PowerClamp
- Includes clamping set
- Includes Al locking ring
- Includes indexing pin and retention screws

Details PDF (683.586)

Run-out and Setting Arbors for Turning Machines

Details PDF (490.500)

Guhring HSK-C Locking Rings for Adapter Flanges
Available for HSK-C 25, 32, 40, 50, 63, 80, 100

Details PDF (683.553)

KS Adapter Flanges with Angular Alignment (MN5000-34)
Available for HSK-C 32, 40, 50, 63, 80, 100

Details PDF (687.5523)

Custom Tool Holders

Details PDF (600.500)

HSK-C Front Adapter Flanges
- Includes clamping set
- Includes brass locking ring
- Includes indexing pin and retention screw

Details PDF (683.581)

Hydrostatic Lathe Spindles
- Very low friction will heat the spindle only slightly. Nearly all motor power gets to the
workpiece. Heat that is generated is moved immediately out of the spindle...

Details PDF (240.590)
