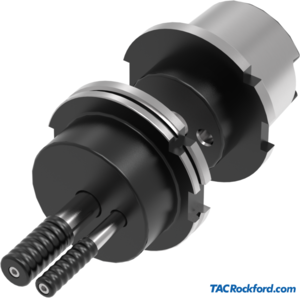

HSK-A 160 Tool Changer Alignment Gauges

TAC Part 440.135.196.000

Data Sheet (PDF)

Notes
Also available for Steep Taper and Capto.

Manufacturer	TAC Rockford
Product	Gauge
Part Type	Tool Changer Alignment
Taper / Standard	HSK-A
Taper Size	160

Part Description

The tool changer alignment gauge is used to check automatic tool changer positioning between the gripper arm, magazine, and the spindle. Improper alignment can result in abnormal wear on the spindle interface, tool changer, and tool holder. In addition, misclamping and dropped tools can also occur.

The gauge checks axial alignment using pin (1) and radial alignment using pin (2).

Related Parts

Taper								Order Number
HSK-A/E 25								440.135.125.000
HSK-A/E 32								440.135.132.000
HSK-A/E 40								440.135.140.000
HSK-A/E 50								440.135.150.000
HSK-A/E 63								440.135.163.000
HSK-A 80								440.135.180.000
HSK-A 100								440.135.190.000
HSK-A 125								440.135.192.000
