With supplementary possibilities for customer modification
Click on image to enlarge

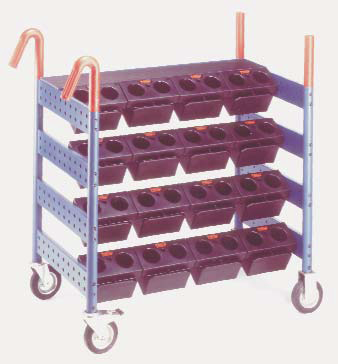

Download PDF: TULMOBIL Tool Carriers Model S3 (580.129.015)
Description
To accommodate 16 tool carriers at an angle on aluminum profile rails.
With 2 swivel castors (one with locking device), 2 fixed castors, 2 safety hand grips (bent), 2 safety hand grips (upright), 4 aluminum profile rails, 1 deposit board with ridged rubber surface.
Length: 1020 mm
Width: 620 mm
Height: 940 mm
Loading capacity: 500 kp
Weight: 54.0 kg
Tires: Without tread, grey solid rubber
Up to 2 additional aluminum profile rails can be ordered separately for fitting lengthwise to accommodate up to 8 additional tool carriers at an angle.
1 aluminum profile rail including fastening screws: 962 mm, to carry 4 tool carriers, weight 2.0 kg.
Ref.no. 127.209
2 rectangular steel sections can be ordered separately for fitting lengthwise to accommodate an additional 8 tool carriers horizontally – particularly suitable for holding longer tools.
1 steel section set (2 steel sections are fastening screws): 960 mm, to carry 8 tool carriers, weight 7.5 kg.
Ref.no. 127.212
