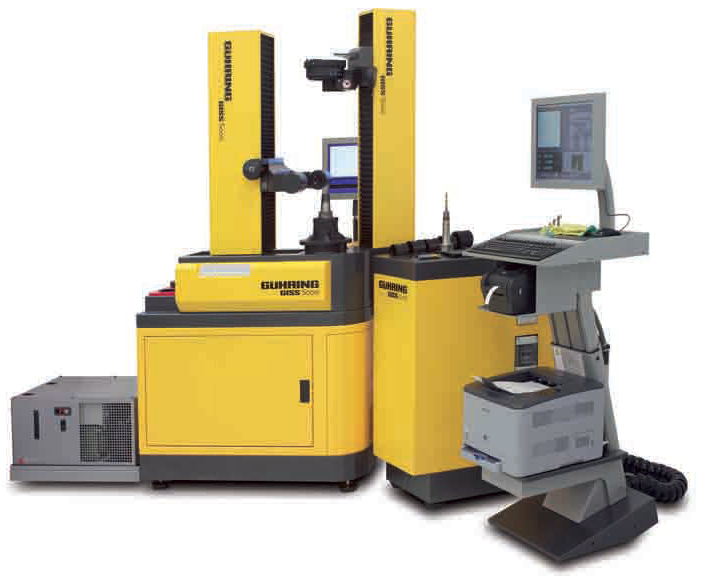

Guhring GISS 5000 Induction Shrink Fit Systems

Like the GISS 2500 system, GISS 5000 pre-setting, shrink fitting and measuring with one facility. In addition, GISS 5000 also offers the possibility of a fully automatic, highly accurate cutting edge form recognition and length pre-setting facility.

Further advantages are:

• Automatic shrink fitting process in order to achieve the highest, personnel independent accuracy
• Wide measuring range up to 800 mm (depending on options fitted)
• Large measuring diameter up to 600 mm (depending on options fitted)
• Highly accurate pre-setting and measuring

Naturally, the GISS 5000 shrink fit system can be specifically adapted to individual customer requirements. Contact us for more information.

Equipment:

• "Saturn 1" or "Saturn 2" (optional) image processing with cutting edge inspection and fully automatic cutting edge form recognition
• 13 kW induction shrink fit system
• Automatic zero point monitoring
• Tool holder available for various systems
• Automatic length stop system
• Water cooling system
• 15" TFT color display with touchscreen
• Cabinet, label printer (optional)
• High accuracy spindle with auto-focus and power clamping
• Automatic "Z" length stop system
• 3-axis-CNC-control with auto-focus (optional with "Saturn 2" image processing)
• Flue gas extraction (optional)

Technical Data:

• Measuring range, longitudinal: 600 to 800 mm*
• Measuring diameter: 320 to 600 mm*
• Repeatability: +/- 0.002 mm
• Pre-setting accuracy: < 2 micro-m
• Length accuracy (shrink fitting): +/- 0.015 mm
• Display accuracy: 0.001 mm
• Positional accuracy: 0.002 mm
• Concentricity: 0.002 mm
(*depending on options fitted)
