HSK Tool Changer Alignment Gauges

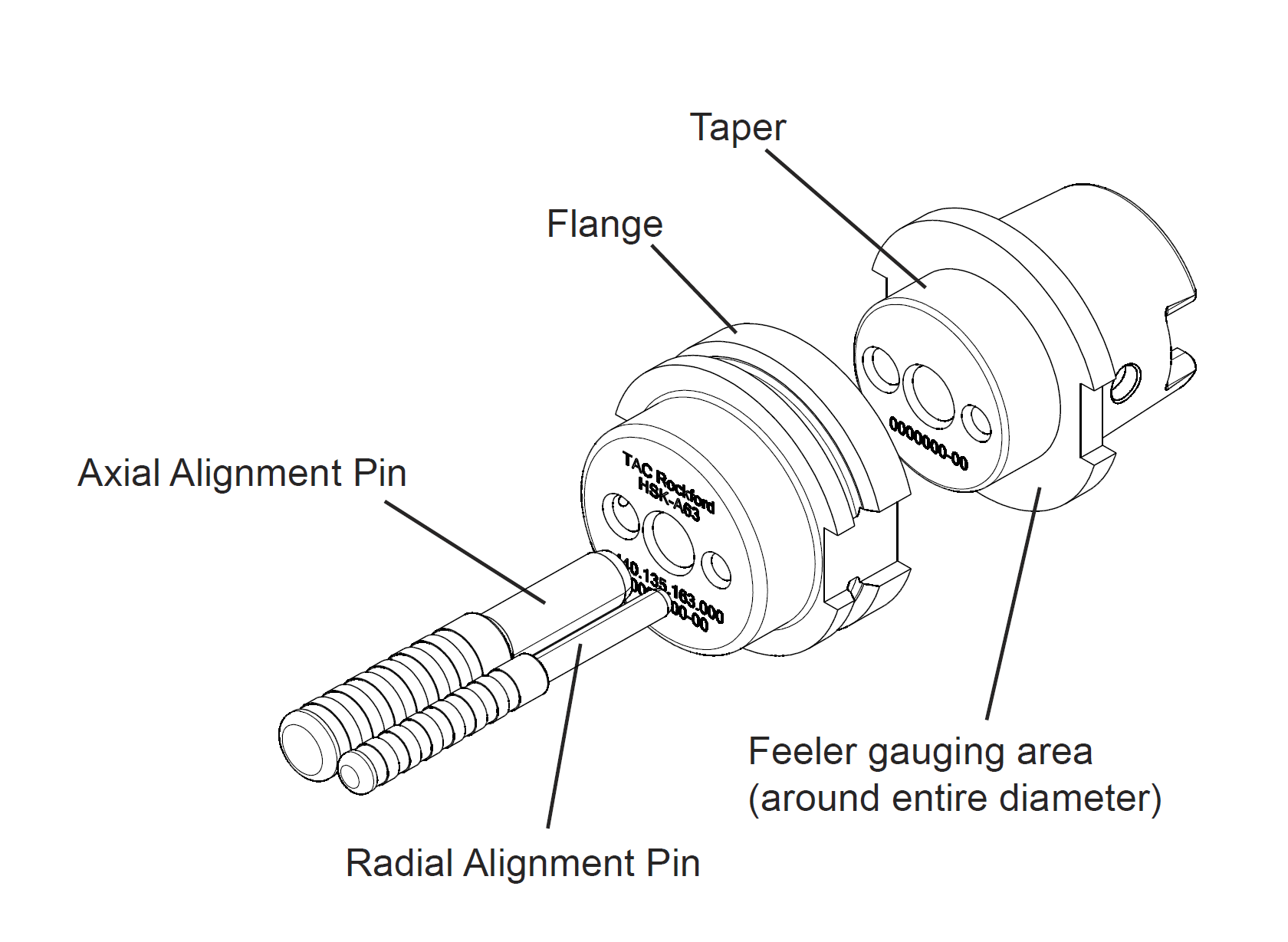

HSK Tool Changer Alignment Gauges Diagram
Click image to enlarge

The tool changer alignment gauge is used to check automatic tool changer positioning between the gripper arm, magazine, and the spindle. Improper alignment can result in abnormal wear on the spindle interface, tool changer, and tool holder. In addition, misclamping and dropped tools can also occur.

The gauge checks axial alignment using pin (1) and radial alignment using pin (2).

Taper Order Number
HSK-A/E 25 440.135.125.000
HSK-A/E 32 440.135.132.000
HSK-A/E 40 440.135.140.000
HSK-A/E 50 440.135.150.000
HSK-A/E 63 440.135.163.000
HSK-A 80 440.135.180.000
HSK-A 100 440.135.190.000
HSK-A 125 440.135.192.000
HSK-A 160 440.135.196.000

Data Sheet

PDF data sheet: HSK Tool Changer Alignment Gauges (440.100)
