Zero Master Digital

Zero Master – the precise and versatile measuring instrument for milling and EDM machines (insulated probe)

It is clamped into the milling spindle or the electrode head and makes possible an exact positioning of the spindle axis on the edges of the workpiece or jig set and the length to be measured quickly and easily. You may measure in any direction (X-, Y-, Z-axis). Once clamped in the machine spindle the runout (T.I.R.) is fully adjustable to zero.

The dial gauge indicates the distance between spindle axis and workpiece edge. As soon as the gauge shows zero, the spindle axis is exactly on the workpiece edge on the first attempt. This eliminates calculating or problems with positive or negative signs.

The digital display has large numbers that measure in increments of 0,01mm. It can be easily read from a long distance. (i.e. when mounted on a large machining center.) The digital display is splash-proof and dust-proof and can be stored in the tool magazine of the machine. The extended overrun distance in connection with the proven preset breaking point of the probe give additional security.

Technical Details

Zero Master inch Order Number: 80.560.00.IN

Diameter of prope tip ball 0.2"

Smallest unit of measure 0.0004"

Repeatability 0.0004"

Measuring accuracy 0.0004"

Display

Display size 1.2" x 0.5"

Height of numbers 0.3"

Service life of battery (continuous operation) approx. 3000 hrs

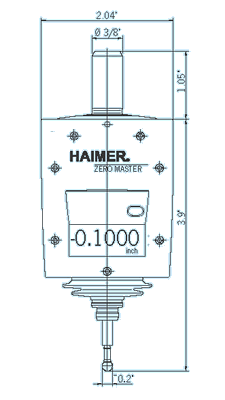

Housing length (w/short probe tip, excluding clamping shank) 3,9"

Accessories

Short probe tip Length 1"- ball tip Ø 2 mm Order Number: 80.365.20

Long probe tip Length 2.6"- ball tip Ø 8 mm Order Number: 80.365.30
