3D Sensor Digital

The Digital 3D-Sensor is a further development of the time proven Mechanical 3D-Sensor. It serves for approaching workpiece edges on milling and EDM machines. The spindle may be positioned quickly and safely on the references edge. The approaching operation can be exactly monitored on the digital display. The 0-position is found on the first try. The machine coordinate system can be set without any calculations because the spindle axis is positioned exactly on the approached edge. The digital display has large numbers that measure in increments of 0,001mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is splash-proof and dust-proof and can be stored in the tool magazine of the machine. Data Sheet 570.110

Technical Details

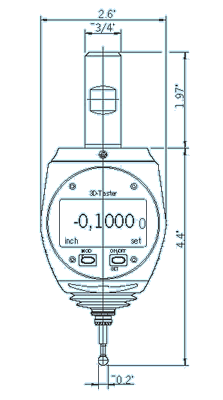

3D Sensor Digital Order Number: 80.460.00.IN

Diameter of prope tip ball 0.2"

Smallest unit of measure 0.00005"

Repeatability 0.00005"

Measuring accuracy 0.0002"

Display

Display mode May be switched to inch or metric

Display size 1.8" x 0.9"

Height of numbers 0.3"

Service life of battery (continuous operation) approx. 3000 hrs

Accessories

Short probe Length 1"- ball tip Ø 0.2" Order Number: 80.460.00.IN

Long probe Length 2.6"- ball tip Ø 0.4" Order Number: 80.365.30
