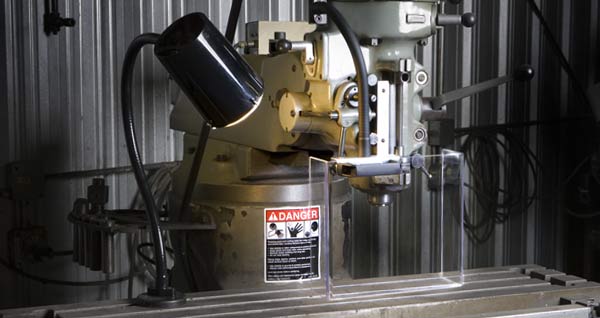

U Shaped Shields

Each shield assembly below consists of a U-shaped polycarbonate shield that is 3/16" thick (see the description for the shield length, height, and thickness), a shield bracket assembly, a snake arm with a direct-mount base, and mounting hardware. The direct-mount base can be fastened to most any flat surface at least 2" x 1" with the included mounting hardware (two 1/4"-20 x 3/4" hex socket-head cap screws, two 1/4"-20 nylon-insert hex locknuts, and two No. 12 pan-head Phillips x 1" zinc-plated sheet-metal screws). Optional mounting bases and brackets are available that can be added to the direct-mount base to provide additional mounting flexibility. There is a magnetic base, C-clamp base, and horizontal and vertical right-angle brackets. The magnetic base consists of a 3 1/4"-diameter magnet with 100 pounds of holding force. The C-clamp base can be mounted to a table or ledge up to 1 7/8" thick. The horizontal and vertical right-angle brackets can be helpful in positioning the shield where you need it depending on the position the base is to be mounted.

Product Images

This shield is furnished with the following part numbers.

SHD-8157U: 3/16"-Inch Shield With 8" Arm

SHD-12157U: 3/16"-Inch Shield With 12" Arm

SHD-18157U: 3/16"-Inch Shield With 18" Arm

SHD-21157U: 3/16"-Inch Shield With 21" Arm

SHD-24157U: 3/16"-Inch Shield With 24" Arm

This shield is furnished with the following part numbers.

SHD-81510U: 3/16"-Inch Shield With 8" Arm

SHD-121510U: 3/16"-Inch Shield With 12" Arm

SHD-181510U: 3/16"-Inch Shield With 18" Arm

SHD-211510U: 3/16"-Inch Shield With 21" Arm

SHD-241510U: 3/16"-Inch Shield With 24" Arm

This shield is furnished with the following part numbers.

SHD-8169U: 3/8"-Inch Shield With 8" Arm

SHD-12169U: 3/8"-Inch Shield With 12" Arm

SHD-18169U: 3/8"-Inch Shield With 18" Arm

SHD-21169U: 3/8"-Inch Shield With 21" Arm

SHD-24169U: 3/8"-Inch Shield With 24" Arm

U Shaped Shields Ordering Information

SHD-8157U: Shield Assembly With 15" x 7" x 3/16" U-Shaped Shield (5" Sides) and 8" Snake Arm

SHD-12157U: Shield Assembly With 15" x 7" x 3/16" U-Shaped Shield (5" Sides) and 12" Snake Arm

SHD-18157U: Shield Assembly With 15" x 7" x 3/16" U-Shaped Shield (5" Sides) and 18" Snake Arm

SHD-21157U: Shield Assembly With 15" x 7" x 3/16" U-Shaped Shield (5" Sides) and 21" Snake Arm

SHD-24157U: Shield Assembly With 15" x 7" x 3/16" U-Shaped Shield (5" Sides) and 24" Snake Arm

SHD-81510U: Shield Assembly With 15" x 10" x 3/16" U-Shaped Shield (5" Sides) and 8" Snake Arm

SHD-121510U: Shield Assembly With 15" x 10" x 3/16" U-Shaped Shield (5" Sides) and 12" Snake Arm

SHD-181510U: Shield Assembly With 15" x 10" x 3/16" U-Shaped Shield (5" Sides) and 18" Snake Arm

SHD-211510U: Shield Assembly With 15" x 10" x 3/16" U-Shaped Shield (5" Sides) and 21" Snake Arm

SHD-241510U: Shield Assembly With 15" x 10" x 3/16" U-Shaped Shield (5" Sides) and 24" Snake Arm

SHD-8169U: Shield Assembly With 16" x 9" x 3/16" U-Shaped Shield (3" Sides) and 8" Snake Arm

SHD-12169U: Shield Assembly With 16" x 9" x 3/16" U-Shaped Shield (3" Sides) and 12" Snake Arm

SHD-18169U: Shield Assembly With 16" x 9" x 3/16" U-Shaped Shield (3" Sides) and 18" Snake Arm

SHD-21169U: Shield Assembly With 16" x 9" x 3/16" U-Shaped Shield (3" Sides) and 21" Snake Arm

SHD-24169U: Shield Assembly With 16" x 9" x 3/16" U-Shaped Shield (3" Sides) and 24" Snake Arm
