Replacement Shield Brackets

The replacement shield bracket assemblies below connect a polycarbonate shield to a snake arm.

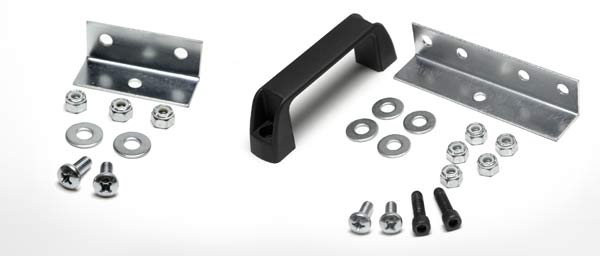

The BKT-120 shield bracket assembly is for shields that have two mounting holes or two elongated slots. It consists of a three-hole zinc-plated right-angle bracket, two 1/4"-20 x 5/8" pan-head Phillips zinc-plated machine screws, two 1/4" USS zinc-plated flat washers, and three 1/4"-20 nylon-insert hex locknuts.

The BKT-140 shield bracket assembly is for shields that have four mounting holes. It consists of a five-hole zinc-plated right-angle bracket, two 1/4"-20 x 5/8" pan-head Phillips zinc-plated machine screws, two 1/4"-20 x 7/8" black oxide hex socket-head cap screws, four 1/4" USS zinc-plated flat washers, five 1/4"-20 nylon-insert hex locknuts, and one black nylon-plastic handle.
