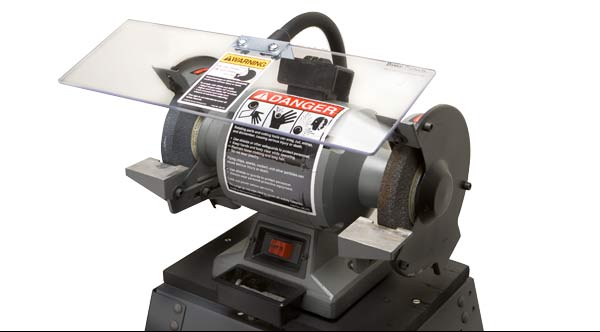

Flat Snake-Arm Shields
Flat Snake Arm Images
This shield is furnished with the following part numbers. SHD-864F: 1/8"-Inch Shield With 8" Arm SHD-1264F: 1/8"-Inch Shield With 12" Arm SHD-1864F: 1/8"-Inch Shield With 18" Arm SHD-2164F: 1/8"-Inch Shield With 21" Arm SHD-2464F: 1/8"-Inch Shield With 24" Arm
This shield is furnished with the following part numbers. SHD-896F: 1/8"-Inch Shield With 8" Arm SHD-1296F: 1/8"-Inch Shield With 12" Arm SHD-1896F: 1/8"-Inch Shield With 18" Arm SHD-2196F: 1/8"-Inch Shield With 21" Arm SHD-2496F: 1/8"-Inch Shield With 24" Arm
This shield is furnished with the following part numbers. SHD-8165F: 3/16"-Inch Shield With 8" Arm SHD-12165F: 3/16"-Inch Shield With 12" Arm SHD-18165F: 3/16"-Inch Shield With 18" Arm
This shield is furnished with the following part numbers. SHD-8107F: 3/16"-Inch Shield With 8" Arm SHD-12107: 3/16"-Inch Shield With 12" Arm SHD-18107F: 3/16"-Inch Shield With 18" Arm SHD-21107F: 3/16"-Inch Shield With 21" Arm SHD-24107: 3/16"-Inch Shield With 24" Arm SHD-30107F: 3/16"-Inch Shield With 30" Arm
This shield is furnished with the following part numbers. SHD-81412F: 3/16"-Inch Shield With 8" Arm SHD-121412F: 3/16"-Inch Shield With 12" Arm SHD-181412F: 3/16"-Inch Shield With 18" Arm SHD-211412F: 3/16"-Inch Shield With 21" Arm SHD-241412F: 3/16"-Inch Shield With 24" Arm Flat Shields Ordering InformationSHD-864F: Shield Assembly With 6" x 4" x 1/8" Flat Shield and 8" Snake Arm SHD-1264F: Shield Assembly With 6" x 4" x 1/8" Flat Shield and 12" Snake Arm SHD-1864F: Shield Assembly With 6" x 4" x 1/8" Flat Shield and 18" Snake Arm SHD-2464F: Shield Assembly With 6" x 4" x 1/8" Flat Shield and 24" Snake Arm SHD-896F: Shield Assembly With 9" x 6" x 1/8" Flat Shield and 8" Snake Arm SHD-1296F: Shield Assembly With 9" x 6" x 1/8" Flat Shield and 12" Snake Arm SHD-1896F: Shield Assembly With 9" x 6" x 1/8" Flat Shield and 18" Snake Arm SHD-2196F: Shield Assembly With 9" x 6" x 1/8" Flat Shield and 21" Snake Arm SHD-2496F: Shield Assembly With 9" x 6" x 1/8" Flat Shield and 24" Snake Arm SHD-8165F: Shield Assembly With 16" x 5" x 3/16" Flat Shield and 8" Snake Arm SHD-12165F: Shield Assembly With 16" x 5" x 3/16" Flat Shield and 12" Snake Arm SHD-18165F: Shield Assembly With 16" x 5" x 3/16" Flat Shield and 18" Snake Arm SHD-8107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 8" Snake Arm SHD-12107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 12" Snake Arm SHD-18107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 18" Snake Arm SHD-21107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 21" Snake Arm SHD-24107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 24" Snake Arm SHD-30107F: Shield Assembly With 10" x 7" x 3/16" Flat Shield and 30" Snake Arm SHD-81412F: Shield Assembly With 14" x 12" x 3/16" Flat Shield and 8" Snake Arm SHD-121412F: Shield Assembly With 14" x 12" x 3/16" Flat Shield and 12" Snake Arm SHD-181412F: Shield Assembly With 14" x 12" x 3/16" Flat Shield and 18" Snake Arm SHD-211412F: Shield Assembly With 14" x 12" x 3/16" Flat Shield and 21" Snake Arm SHD-241412F: Shield Assembly With 14" x 12" x 3/16" Flat Shield and 24" Snake Arm |
Machine Tool Gauges
Everything for HSK
Tool Holders
Accessories
Rapid Prototyping
Each shield assembly below consists of a flat polycarbonate shield that is either 1/8" or 3/16" thick (see the description for the shield length, height, and thickness), a shield bracket assembly, a snake arm with a direct-mount base, and mounting hardware. The direct-mount base can be fastened to most any flat surface at least 2" x 1" with the included mounting hardware (two 1/4"-20 x 3/4" hex socket-head cap screws, two 1/4"-20 nylon-insert hex locknuts, and two No. 12 pan-head Phillips x 1" zinc-plated sheet-metal screws).
Optional mounting bases and brackets are available that can be added to the direct-mount base to provide additional mounting flexibility. There is a magnetic base, C-clamp base, and horizontal and vertical right-angle brackets. The magnetic base consists of a 3 1/4"-diameter magnet with 100 pounds of holding force. The C-clamp base can be mounted to a table or ledge up to 1 7/8" thick. The horizontal and vertical right-angle brackets can be helpful in positioning the shield where you need it depending on the position the base is to be mounted.
