Portable Shields

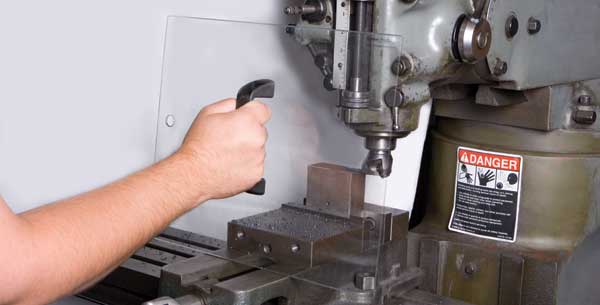

These 3/16"-thick polycarbonate portable shields can be used on mills, drills, lathes, and any other machines that need a handheld or attached shield to protect the operator. They are available in two sizes. The large shield has various configurations. Two of the shields shown below (SHD-2315MP and SHD-2315MFP) are furnished with two 1/2"-13 x 1" long button-head cap screws for attaching the shield to the vise (most vises have two 1/2"-13 holes on 3 7/8" centers). The shield can be stored on the machine, a wall, or a post by hanging the shield on the hook provided.

Portable Shield Images

Lathe Chuck Shields Ordering Information

SHD-2315MP: Portable Shield With 22" x 15 7/8" Shield With 3" Vertical Wings and Vise Cutout

SHD-2315MFP: Portable Shield With 23 7/8" x 15 7/8" Flat Shield and Vise Cutout

SHD-1512FP: Portable Shield With 15 7/8" x 12 7/8" Flat Shield

SHD-2315FP: Portable Shield With 23 7/8" x 15 7/8" Flat Shield

SHD-2315LPL: Portable Shield With 23 7/8" x 14" Shield With 3" Horizontal Wings
